Shimano Deore XT M8100 Groupset

Description

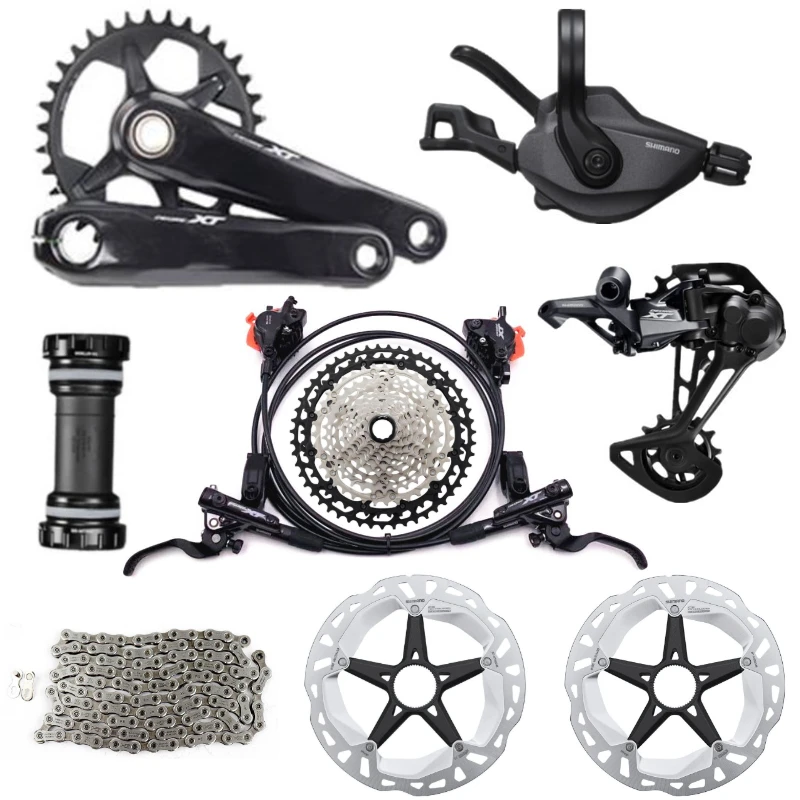

Shimano Deore XT M8100 1×12 Groupset
10-51T Contains:
Shimano DEORE XT SL-M8100 Shift Lever 1×12-Speed
Shimano DEORE XT RD-M8100 Rear Derailleur SGS 12-Speed
Shimano DEORE XT FC-M8100 Crankset( 30/32/34T) (170mm 175mm)
Shimano DEORE XT CS-M8100 Cassette 10-51T
Shimano DEORE XT BR-M8100 Brake (Resin with cooling fins) A pair
Shimano DEORE XT SM-BB-MT800(BSA 68/73mm) or SM-BB-MT800-PA press-in Swirling type
Shimano DEORE XT CN-HG-M8100 chain 124L
Shimano DEORE XT RT-MT800 Rotors 160MM 2 PCS
10-45T Contains:
Shimano DEORE XT SL-M8100 Shift Lever 1×12-Speed
Shimano DEORE XT RD-M8120 Rear Derailleur SGS 12-Speed
Shimano DEORE XT FC-M8100 Crankset( 30/32/34T) (170mm 175mm)
Shimano DEORE XT CS-M8100 Cassette 10-45T
Shimano DEORE XT BR-M8100 Brake (Resin with cooling fins) A pair
Shimano DEORE XT SM-BB-MT800(BSA 68/73mm) or SM-BB-MT800-PA press-in Swirling type
Shimano DEORE XT CN-HG-M8100 chain 124L
Shimano DEORE XT RT-MT800 Rotors 160MM 2 PCS

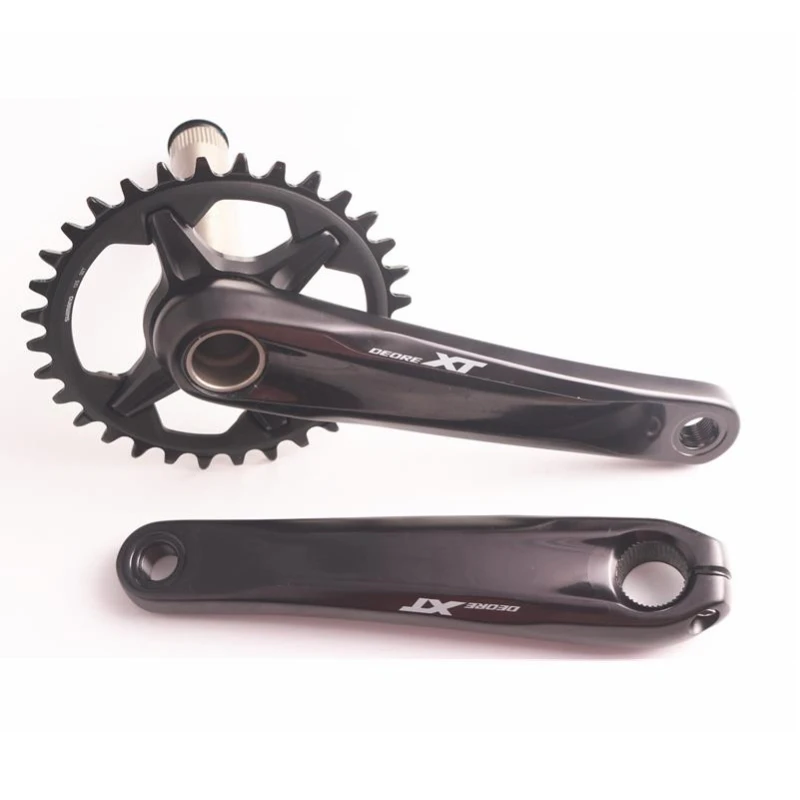

The Shimano XT FC-M8100-1 crank
The Shimano XT FC-M8100 1-speed crank is based on a direct-mount system for quick chainring changes. The stiff and lightweight design of the FC-M8100 crankset provides more driving pleasure on any type of trail.
Use: Enduro, All Mountain, Cross Country
Series: Deore XT M8100
Material crank arms: aluminum
Material axle: steel
Crank arm length: 170.0 mm, 175.0 mm
Teeth: 30T, 32T,34T
Speeds: 1×12-speed
Compatible housing width (with BSA bottom bracket): 68 mm, 73 mm
Bottom bracket (recommended): BB-MT800 or BB-MT800-PA Pressfit
Chain (recommended): HG 12-speed (e.g. CN-M8100)
Features:
Rigid, lightweight design suits aggressive trail riding
Hollow-forged crank arms maximize power transfer and minimize weight
Stronger chain binding for better chain guidance
Special tooth profile developed for MTBs
Smoother driving even in rough terrain

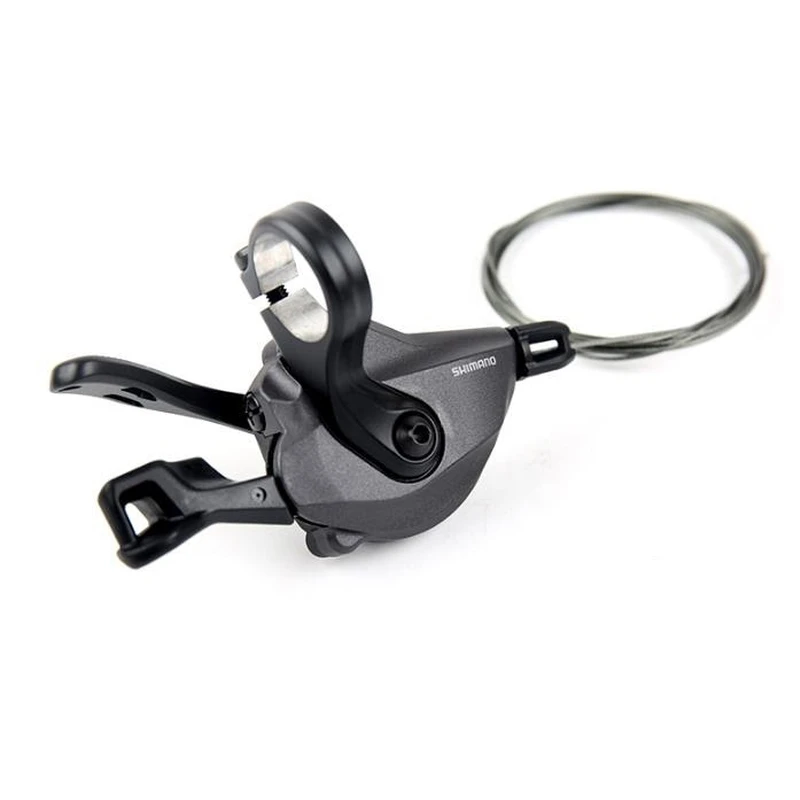

The Shimano XT SL-M8100 shifter
The Shimano XT SL-M8100 1×12-speed shift grip (clamp version) is much easier to use and is clearly more accessible than its predecessor. This increases focus and control while driving. The Shimano 2-Way Release Technology ensures delay-free push and pull movements.
Series: Deore XT M8100
Use: Enduro, All Mountain, Cross Country
Speeds: 2X12 speeds
Installation: clamp (closed)
Features:
Fast and easy switching promotes focus and control
Max. Number of gears per shift: 4 (main lever, rear)
Faster lever access (20% faster than SL-M8000) and low operating forces (35% less than SL-M8000)
Delay-free function thanks to 2-way release
Rubber contact surface
Compatible with 12-speed rear derailleurs
Stored twice
Housing painted
Stainless steel clamping screw
For handlebar grip diameters up to 32 mm with a clamping diameter of 22.2 mm (MTB)
Tech:
Rapidfire Plus
Rapidfire Plus has been used by mountain bikers since 1985. Rapidfire Plus is still the first choice for a wide range of driver groups, from cross-country racers to freeriders and downhillers. Rapidfire Plus is suitable for fast switching. The driver can shift down by up to three gear steps with one shift. All new Rapidfire Plus shifters, from XTR to Deore LX, are equipped with 2-way release (release in two directions). This means that the shift cable is released by pulling with the index finger or pressing with the thumb.
Instant release
The instant release switching process replaces the two-stage click and release process. With the instant release, the train is released immediately when the lever is actuated, thus achieving the fastest possible gear change. Regardless of whether an upshift with a top normal rear derailleur or a downshift with a low normal rear derailleur is to take place – a faster shift is always a better shift.
Multi release
In previous shift systems, the gear change was faster in one direction than in the other. Choosing top normal or low normal always meant sacrificing switching speed in one direction in favor of the other. With Multi Release, two switching levels can now be changed with one lever operation. Result: The fastest possible gear change in both directions, regardless of the type of rear derailleur used.
2-way release
The release lever of a Rapidfire Plus shift lever is pulled towards the handle like the trigger of a pistol. The release lever of the new Rapidfire Plus shift levers from Alivio to XTR can be operated in the same way. However, it can also be used to switch with your thumb.

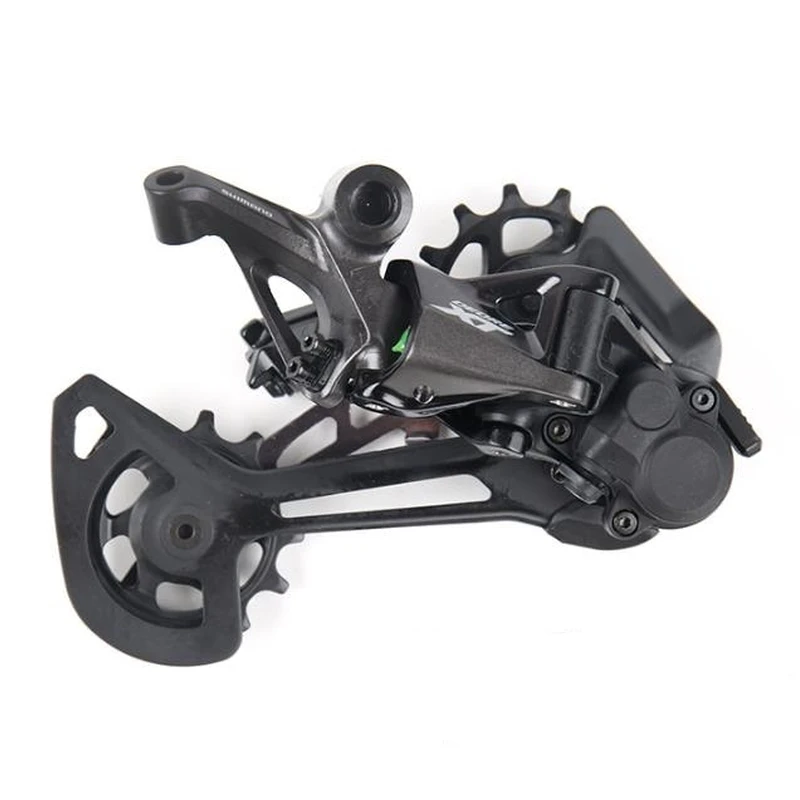

Shimano XT RD-M8100 rear derailleur
The Shimano XT RD-M8100 rear derailleur with 13-tooth pulley and rubber damper ensures a smooth, comfortable shifting process and significantly improves the chain’s hold under all conceivable conditions. It helps to change gears precisely over a huge gear ratio range. Benefit from the advantages of the RD-M8100 rear derailleur if you drive a 1×12-speed system with 10-51T cassette.
Shimano XT RD-M8120 rear derailleur
The Shimano XT RD-M8120 rear derailleur you can switch a 10-45 cassette in a 1×12-speed or 2×12-speed system. It stands for precise and fast gear changes within a huge gear ratio range. The special features of this rear derailleur include 13-tooth cogwheels and a rubber damper, which minimizes noise and improves driving comfort. In addition, the Shimano Shadow RD + technology significantly increases chain retention.
Series: Deore XT M8100
Use: Enduro, All Mountain, Cross Country
Compatibility: Shimano MTB 12-speed
Compatible chain: HG 12-speed
Versions:long Cage(M8100-SGS)
Maximum number of teeth largest sprocket: 51 teeth
Minimum number of teeth largest sprocket: 51 teeth
Maximum number of teeth smallest sprocket: 10 teeth
Minimum number of teeth smallest sprocket: 10 teeth
Maximum front difference: 10 teeth
Total capacity: 41 teeth
Weight：Approx 284g
Versions:long Cage(M8120-SGS)
Maximum number of teeth largest sprocket: 45 teeth
Minimum number of teeth largest sprocket: 45 teeth
Maximum number of teeth smallest sprocket: 10 teeth
Minimum number of teeth smallest sprocket: 10 teeth
Maximum front difference: 10 teeth
Total capacity: 45 teeth
Weight：Approx 290g
Features:
RD-M8100-SGS only compatible with 10-51T.
RD-M8120-SGS double compatible
Fast and precise shifting performance optimized for every trail
Faster and recoil-free shifting
Lower rear derailleur and chain tension in small gears
New bump stopper
Larger jockey wheels
Stable drive on rough ground
Low profile with Shadow RD +
Painted baffles
4 joint bushings, fluorine-coated
Guide and tension roller bearings sealed
Technology:
Shadow RD +
Less distraction. Quiet drive. Rear derailleur stabilizer reduces chain slap. Simple solution to prevent the chain from jumping off. Lighter and more efficient than chain devices with rollers.

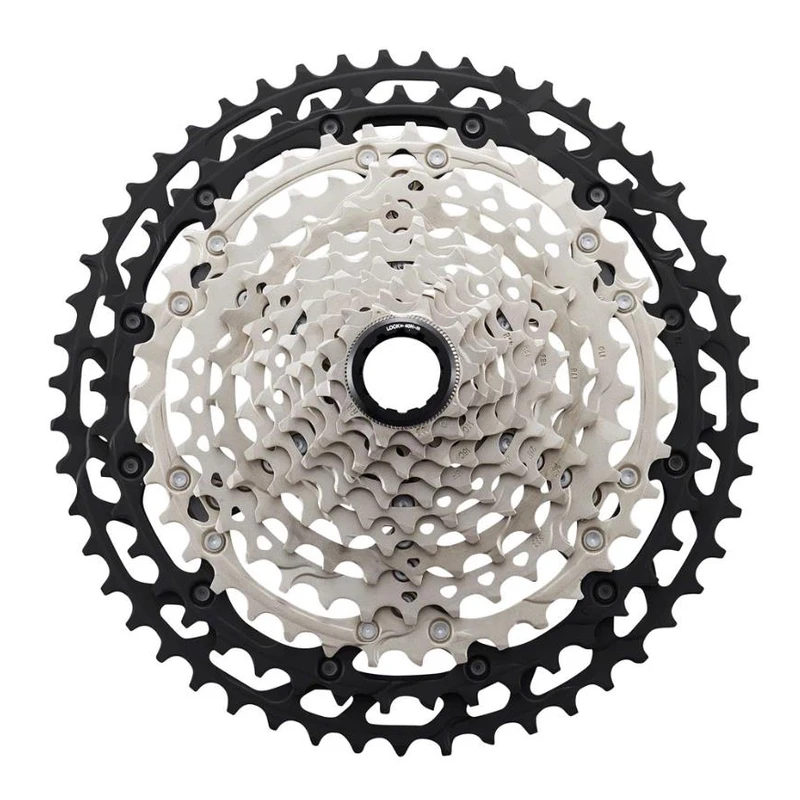

Shimano XT CS-M8100-12 cassette
With the Shimano XT CS-M8100 12-speed cassette you have the choice between a 10-45T and a 10-51T version. If the smallest possible gait jumps are important to you, then the 10-45T gradation is the right one for you. If you want to cover the widest possible range, then use the 10-51T option. Of course, all CS-M8100-12 cassettes have Shimano Hyperglide + technology for high shifting speed, precision and smooth operation when shifting up and down. This also minimizes noise. The spider construction made of aluminum and the production of the two largest sprockets also made of aluminum contribute to weight reduction, robustness and durability.
Use: Enduro, All Mountain, Cross Country
Series: Deore XT M8100
Speed: 12-speed
Chainring: 10-45T (10-12-14-16-18-21-24-28-32-36-40-45)
10-51T (10-12-14-16-18-21-24-28-33-39-45-51)
Weight：Approx 461g(10-45T),470g(10-51T)
Features:
12-speed Hyperglide + cassette
10-51: wide-range version, 10-45: rhythm step version
Fast and precise shifting performance optimized for every type of trail
Pedaling while shifting
Lighter and stiffer construction reduces inertia and improves acceleration (Beam Spider)

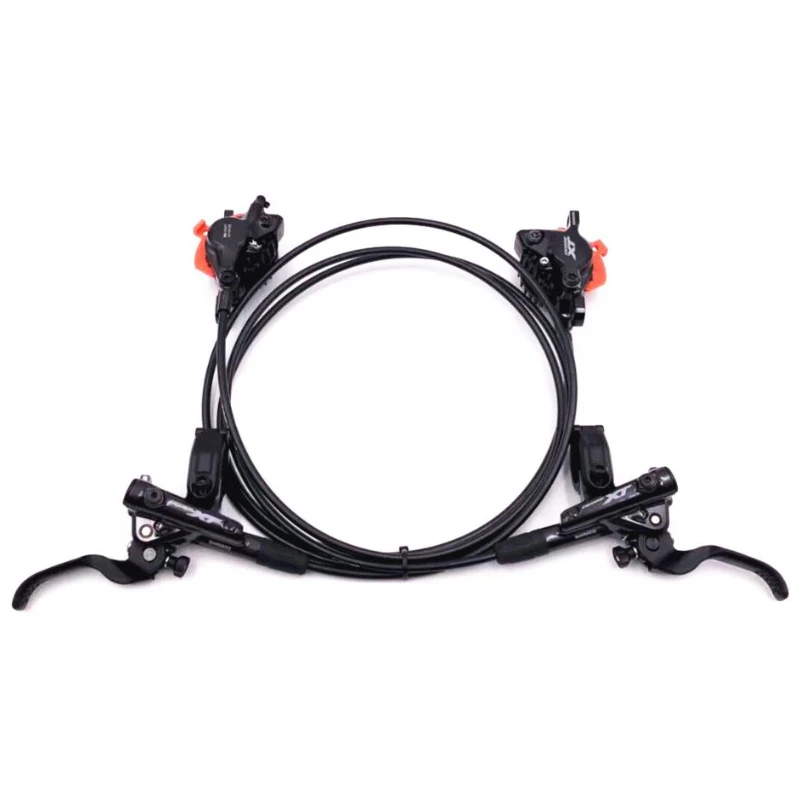

Shimano XT BR-M8100 disc brake set
Shimano XT BR-M8100 (Front + Rear) is a two-piston disc brake set with organic brake pads especially for the cross-country area. The brake calipers are characterized by excellent brake control and a simple connection system. The I-Spec EV compatible brake levers BL-M8100 are installed at an angle, so that there is an additional contact point. This increases stiffness and provides more direct feedback. Shimano Servo Wave also increases braking performance: more performance is available with a shorter free travel.
Series: Deore XT M8100
Use: Cross Country
Lever length: 2-finger
Brake type: hydraulic, 2-piston
Brake medium: mineral oil
Head: SM-BH90-SBM
Brake pad: JO2A Resin Ice-Tech
Cable length: Front:800mm Rear:1600mm
Features:
Excellent brake control helps focus on the trail
lightweight 2-piston system
Simple and quick setup
Optimized lever axis position with additional contact point and revised ergonomics
Flexible, action-optimized cockpit layout thanks to I-Spec EV
10% stiffer than M8000 even in the heat
Faster braking with a shorter free travel
Ceramic piston
IS mounting possible with adapter
Recommended brake disc: RT-MT800
Brake caliper painted, steel fastening screw (5 mm)
Funnel vent
Brake lever anodized, housing painted, stainless steel clamping screw
Technologies:
Servo wave
The Servo Wave brake lever takes up a lot of braking distance at the beginning of its movement, so that the pads can be guided to the brake disc with little leverage. After applying the brake pad, the force transmission factor increases rapidly. The greater part of the lever travel is still available to increase the braking force and to dose more precisely.
I-Spec EV
With the I-Spec EV construction, the Shimano shift lever can be mounted directly on the brake lever, so that there is no clamp and the setting range can be significantly increased. 14 mm are available with I-Spec EV for adjustment in the longitudinal direction, 20 ° for adjustment in the direction of rotation, so that every driver can carry out a setup that suits his individual anatomy or preferences. I-Spec EV control handles are not compatible with older I-Spec systems.
One-way ventilation
One-way ventilation has been developed to quickly and easily prevent air from being in the hydraulic system. Shimano has optimized the brake fluid routing throughout the system to prevent air bubbles from getting stuck in the system.
The one-way flow of the brake fluid together with the funnel for filling the mineral oil enables clean, problem-free bleeding.

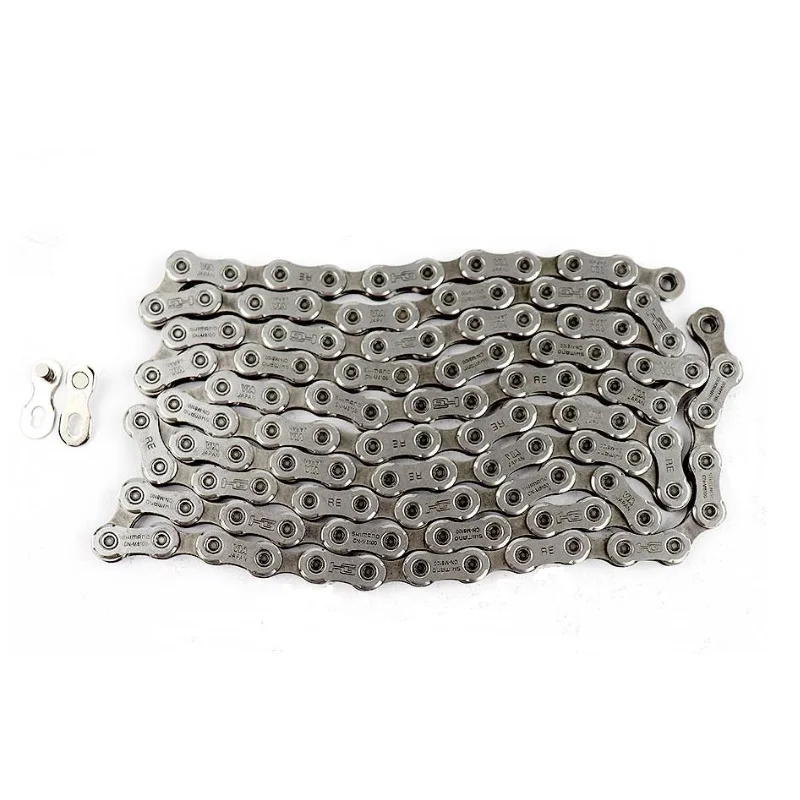

Shimano XT CN-M8100 chain
The Shimano XT CN-M8100 12 chain forms a central part of the XT M8100 group and has therefore been optimized from the ground up. Highly precisely shaped contact surfaces to the chainring and cassette ensure precise, fast and smooth shifting processes in both directions, even under load. In addition, the CN-M8100 chain has chrome-plated inner plates, which noticeably increase the durability.
Material: steel
Speeds: 12-speed
Links:126L with Quick-Link
Rivet type: solid
Directional: Yes
Recommended groups: XT M8100
Features:
Smooth maneuvers over rough terrain and obstacles with a constant rhythm
Enlarged inner link for improved chain retention
Chromed inner strap
Shorter switching times, improved switching behavior
With chain lock for easy installation
Tech:
HG
The 12-speed HG chain delivers smooth power transmission with a tighter chain guide and a quiet and softer drive thanks to larger parts on the end of the inner plates in combination with the Dynamic Chain Engagement Plus crank or chainring. And the combination with Hyperglide + enables shifting without interrupting pedaling.
Directional
The CN-M8100 chain has an asymmetrical design. The direction of rotation must therefore be observed when pulling on. The specially shaped tabs optimize the engagement on the pinion and lead to even smoother gear changes even under load. To save weight, these chains have cutouts on the inner plates. The side with the marking is the outside.

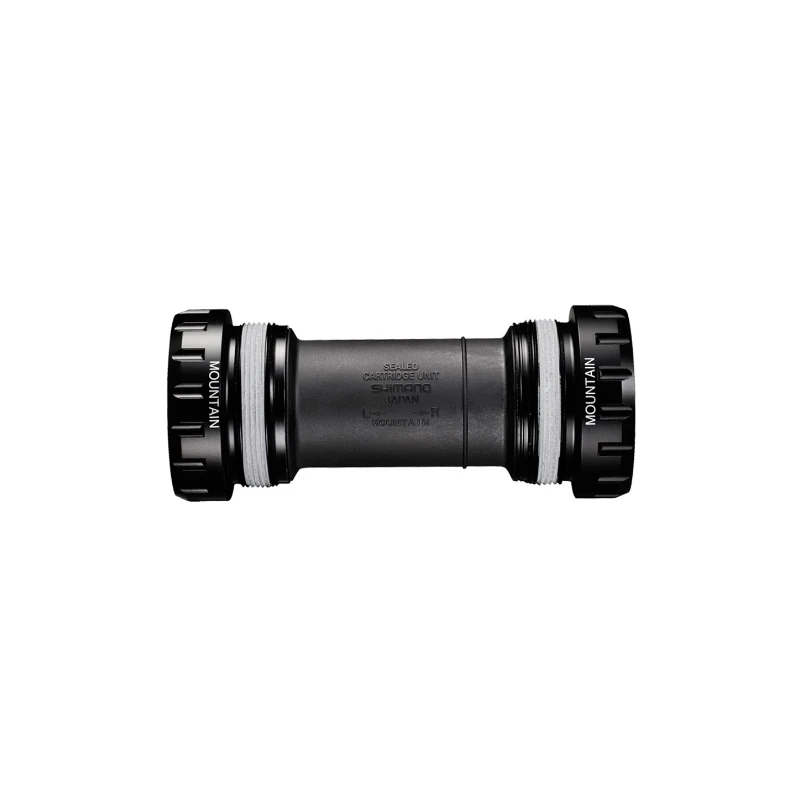

Shimano Bottom Bracket BB-MT800 with 3 aluminum circles
Shimano BB-MT800 is a BSA bottom bracket recommended for XT, SLX, LX and groupless 24mm Hollowtech II cranks. It fits in a bottom bracket shell with a width of 68 or 73 mm. The bearing shells are made of light aluminum and have been anodized.
Bottom Bracket width: 68 mm, 73 mm
Axle diameter: 24 mm (Hollowtech II)
Technology:
Hollowtech II
On the Hollowtech II set, the right crank is firmly connected to the axis of the bottom bracket, which ensures an optimal balance between maximum rigidity and light weight. The outer bottom bracket offers better weight distribution and stability, which ensures more efficient power transmission.

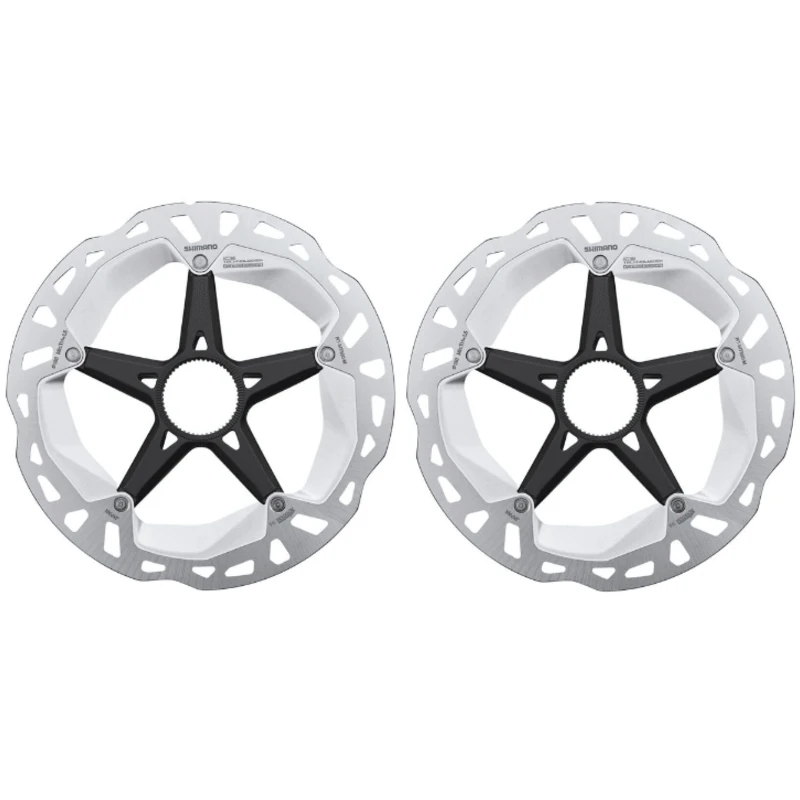

Shimano RT-MT800 Brake Disc Rotors 160MM
Thanks to Ice Technologies FREEZA heat dissipation, the Shimano RT-MT800 brake disc with internal teeth (Internal Serration) significantly reduces the temperatures again, resulting in a more consistent braking performance. The service life of the brake pads is also extended. The proven sandwich construction of the RT-MT800 with aluminum core between two stainless steel layers ensures efficient heat dissipation via the integrated cooling fins.
Lock: Center Lock
Diameter:160 mm
Design: 2 parts
Material disc: sandwich composite made of stainless steel on the outside with aluminum core
Material spider: aluminum
Lockring material: aluminum
Features:
Great heat dissipation through new construction
Reduced fading
Easy installation with spline mount and lock ring
Version with internal teeth
Tech:
Ice-Tech FREEZA
Ice Tech FREEZA brake discs have even less fading due to 40 ° C lower heat development compared to SM-RT98. The three-layer sandwich construction consists of stainless steel flanks and an aluminum core with integrated cooling fins. The two-part construction with the aluminum carrier dissipates the heat well. The dirt-repellent design extends the life of the disc and covering.
