Home / Cycling / Road Bikes / Carbon Fiber Road Frameset With Handlebar Disc Brake

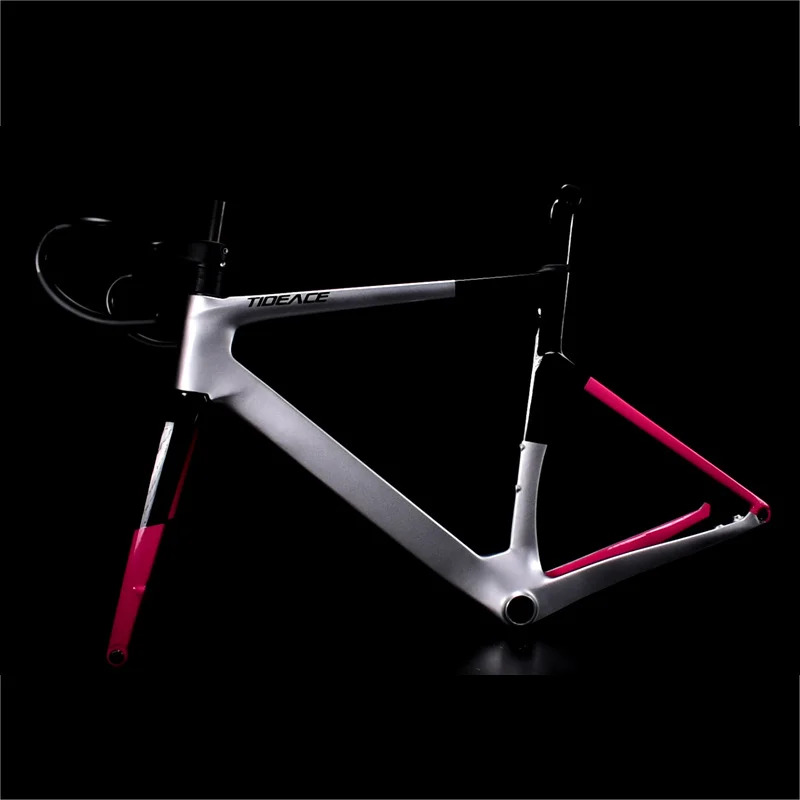

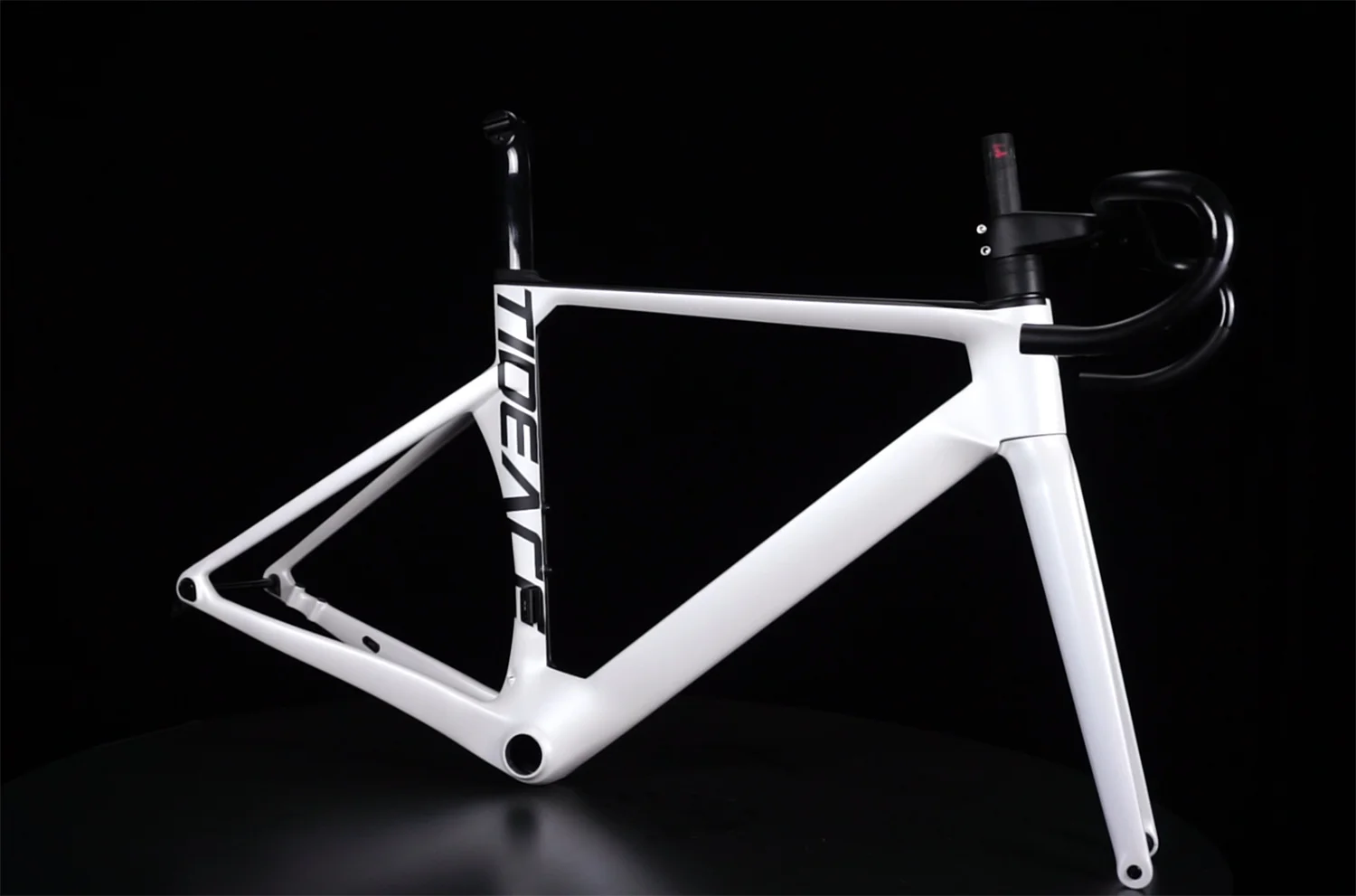

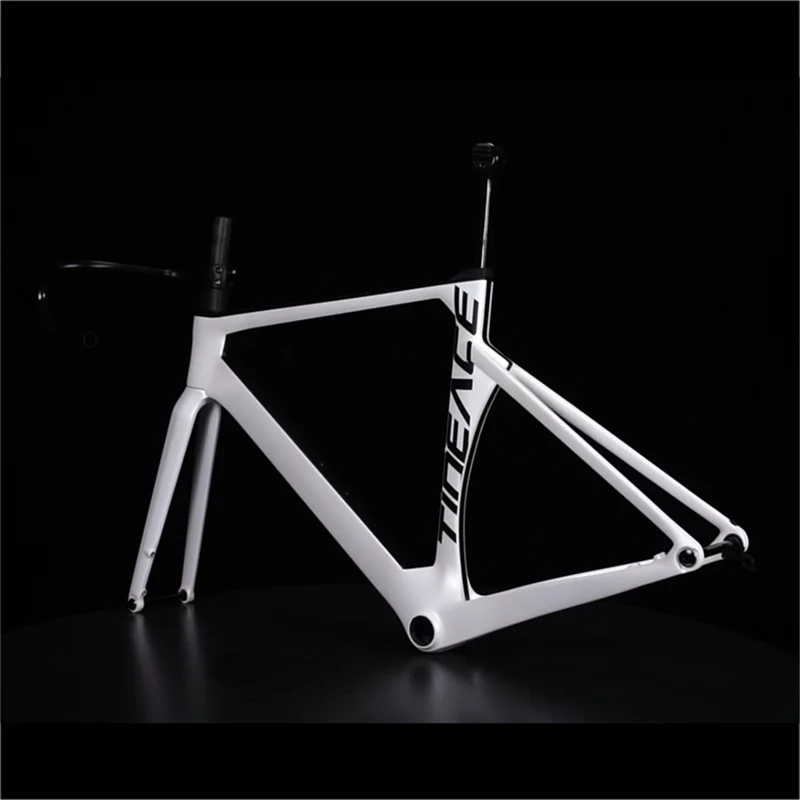

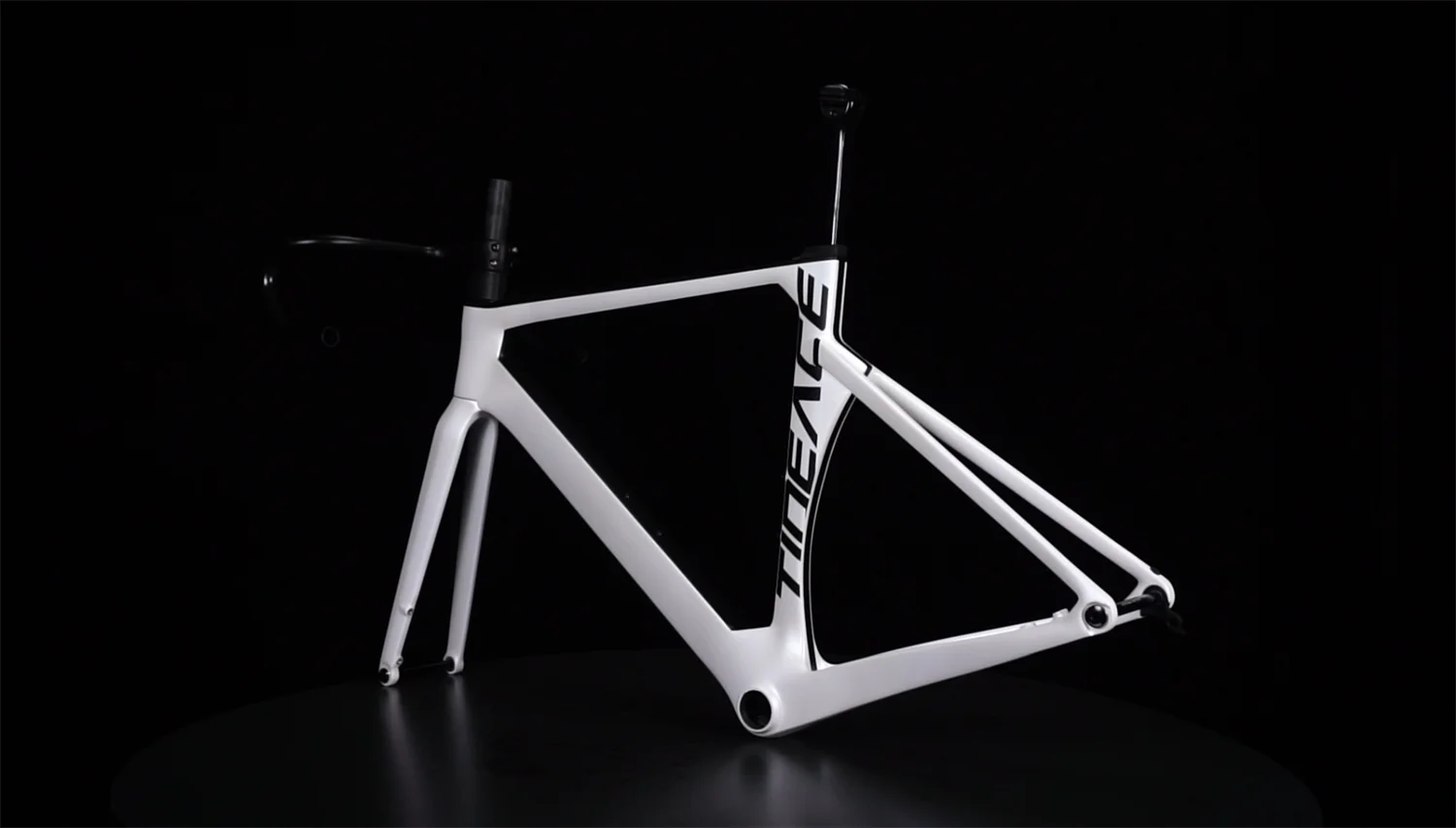

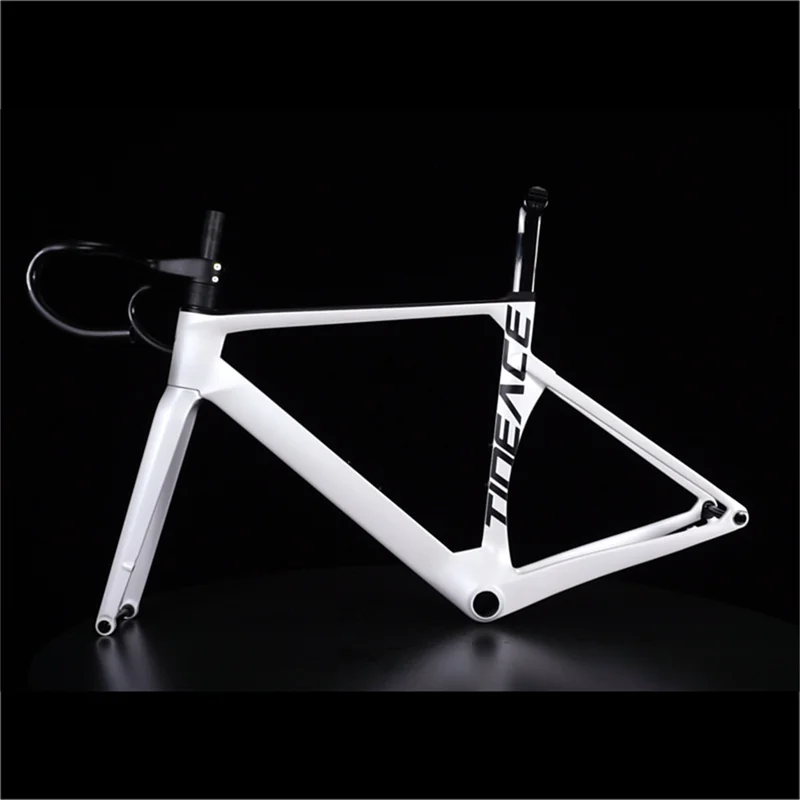

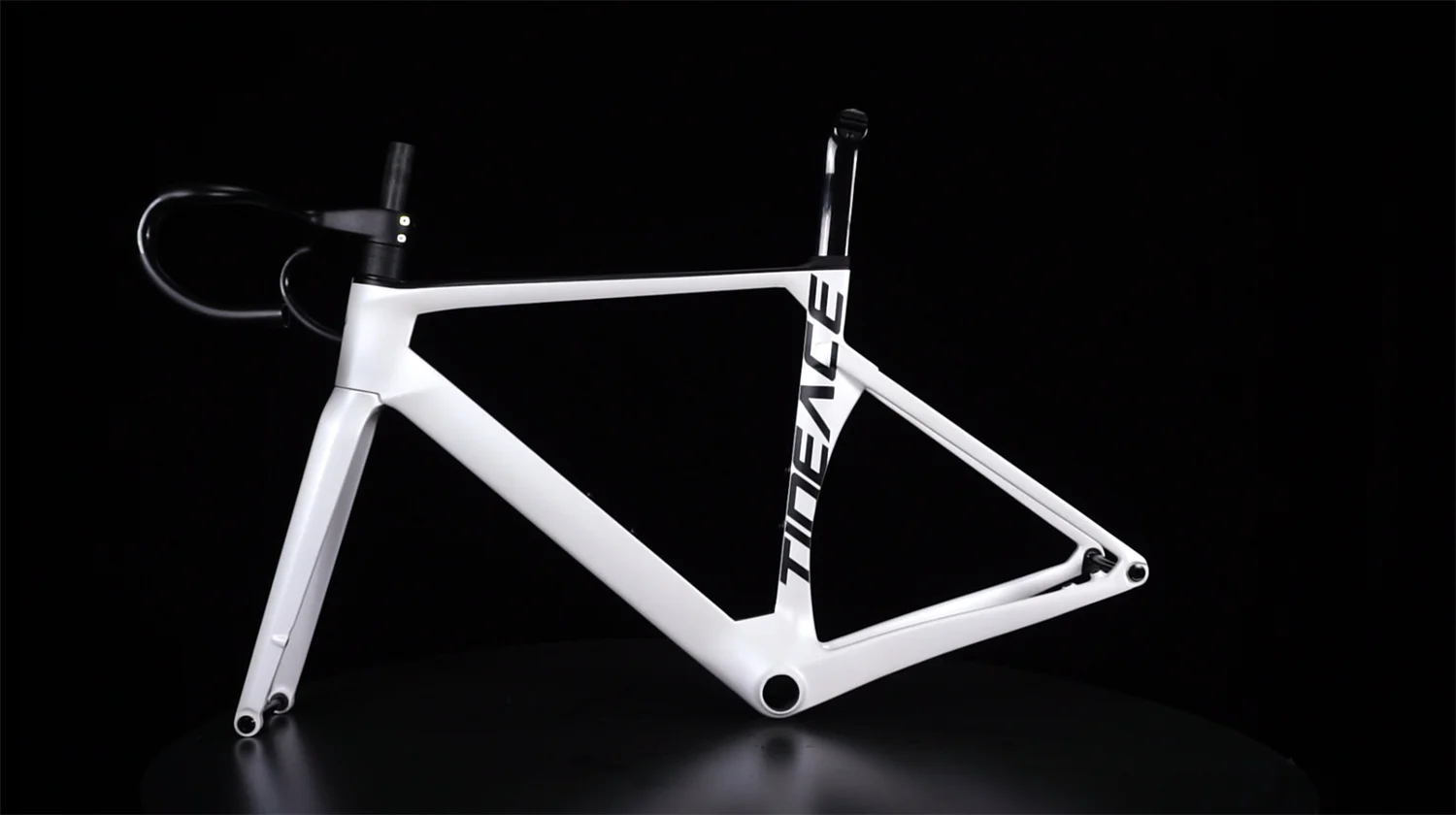

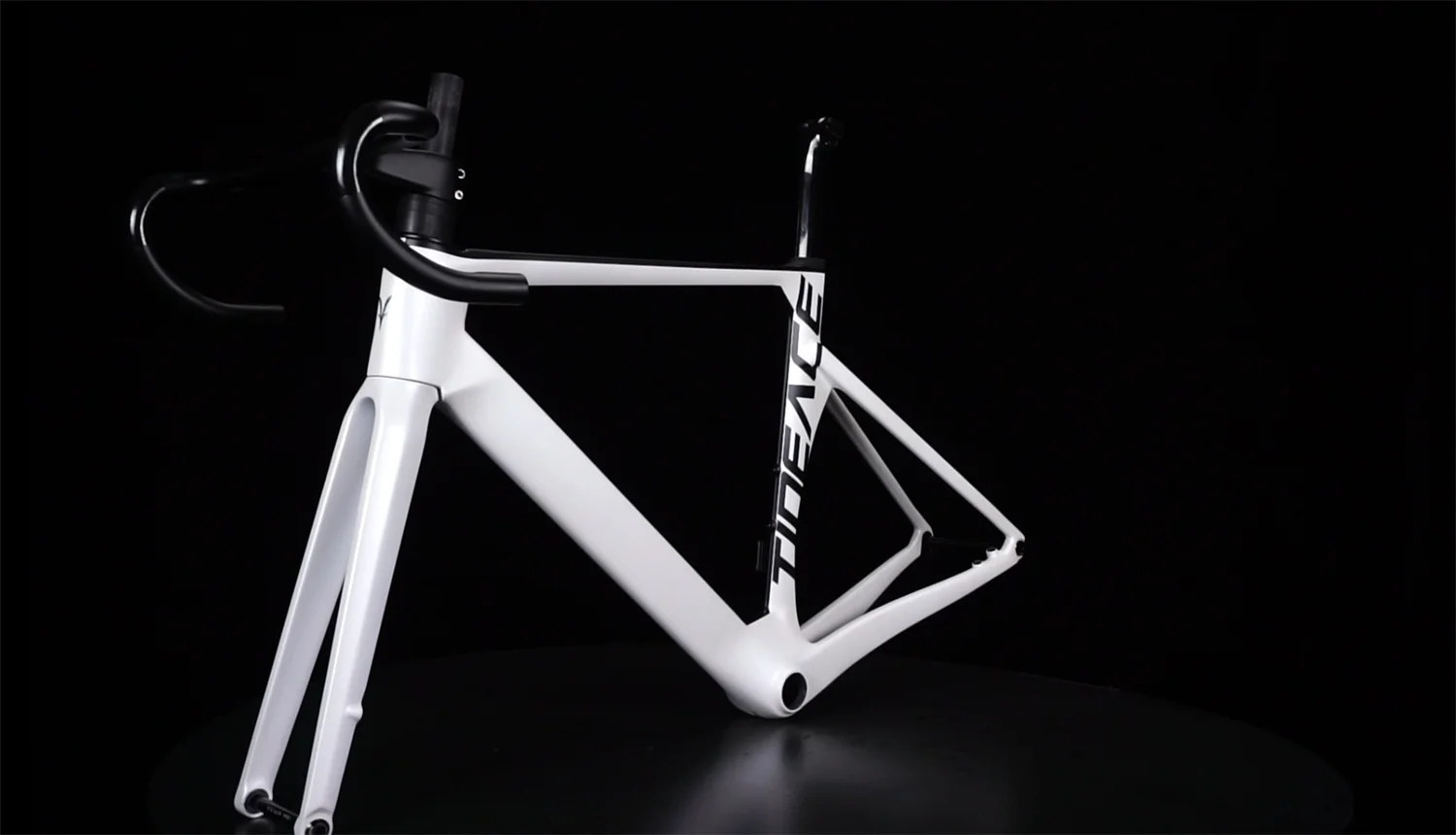

Carbon Fiber Road Frameset With Handlebar Disc Brake 1

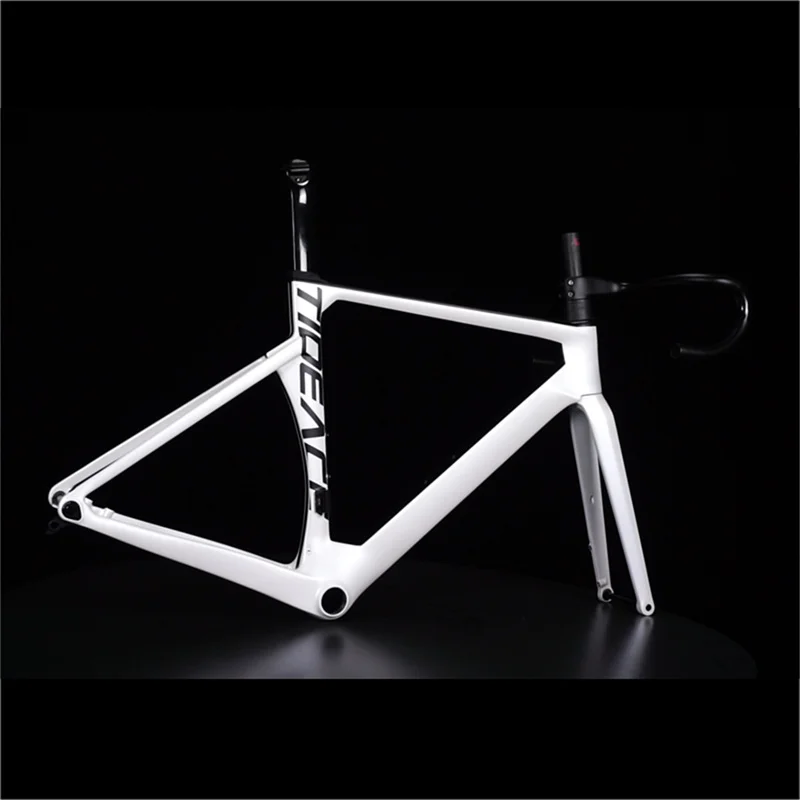

Carbon Fiber Road Frameset With Handlebar Disc Brake 2
Carbon Fiber Road Frameset With Handlebar Disc Brake 3

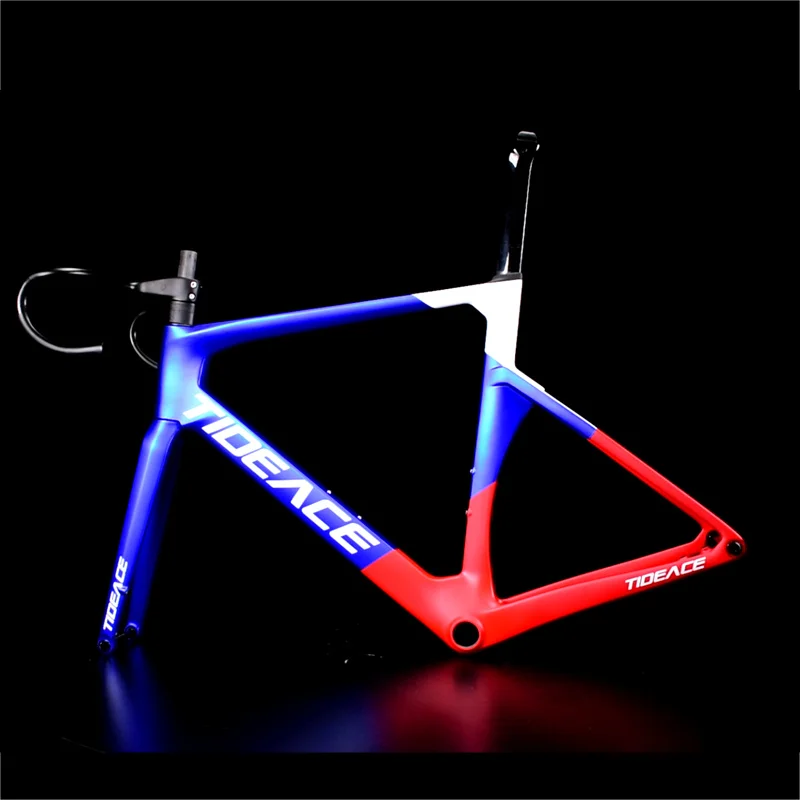

Carbon Fiber Road Frameset With Handlebar Disc Brake 4
Carbon Fiber Road Frameset With Handlebar Disc Brake 5
Carbon Fiber Road Frameset With Handlebar Disc Brake 6

Carbon Fiber Road Frameset With Handlebar Disc Brake

$829.30 – $1,012.75Price range: $829.30 through $1,012.75

Clear
SKU: MPRDQU4ZH8MO Categories: Cycling, Road Bikes Tags: Carbon Fiber Road Bike Frame, Cycling, Internal Cable Carbon Fiber Frame, Outdoor Activities, Racing Bike Frame
  • Description
  • Additional information
  • Reviews (0)

Description

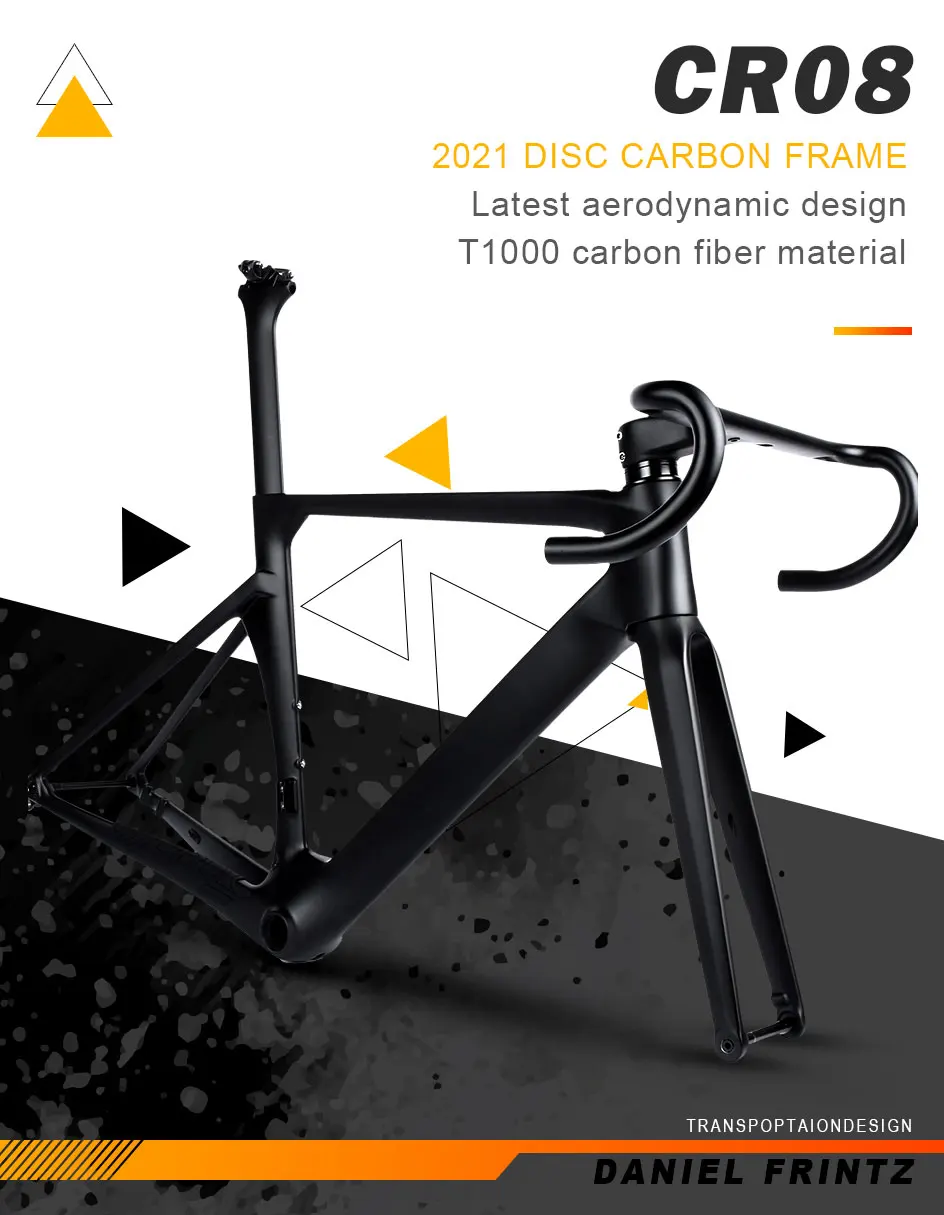

All Internal Cable Routing EPS Technology Endurance Carbon Fiber Road Frameset With Handlebar Disc Brake Racing Bike Frame

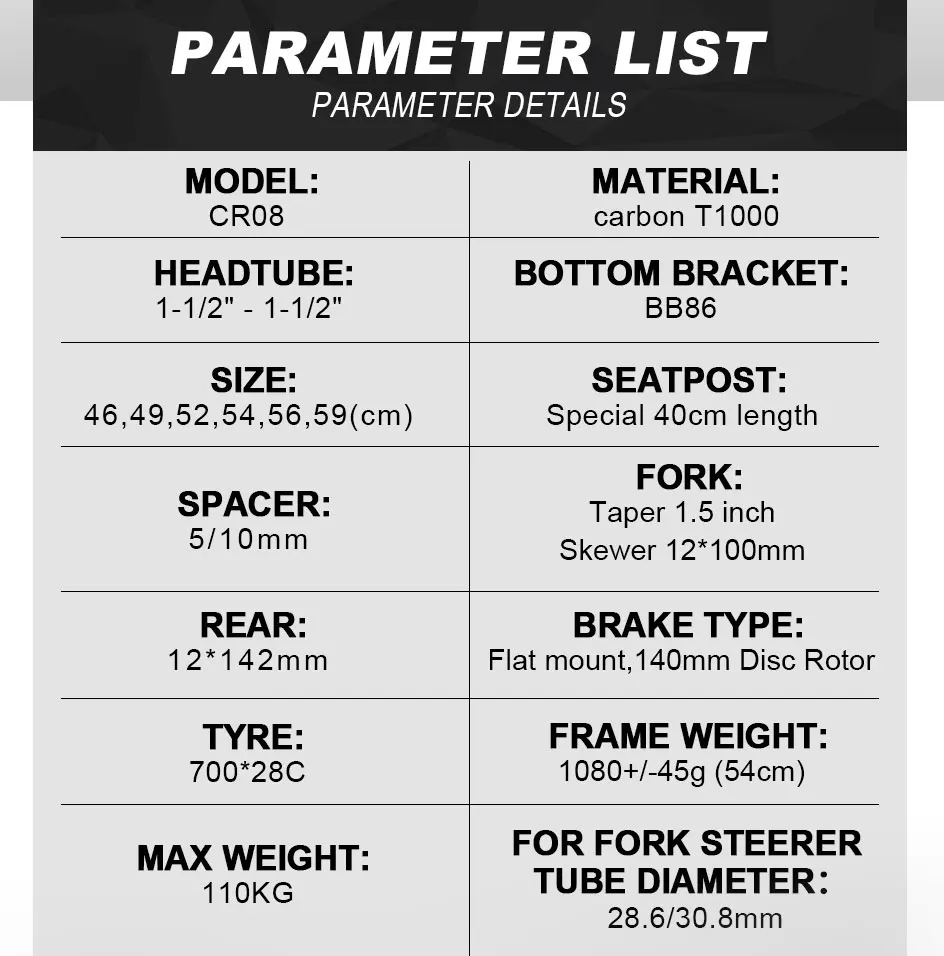

Model No.: CR08
Size: 49/52/54/56/59cm
Material: Toray T1000 carbon fiber

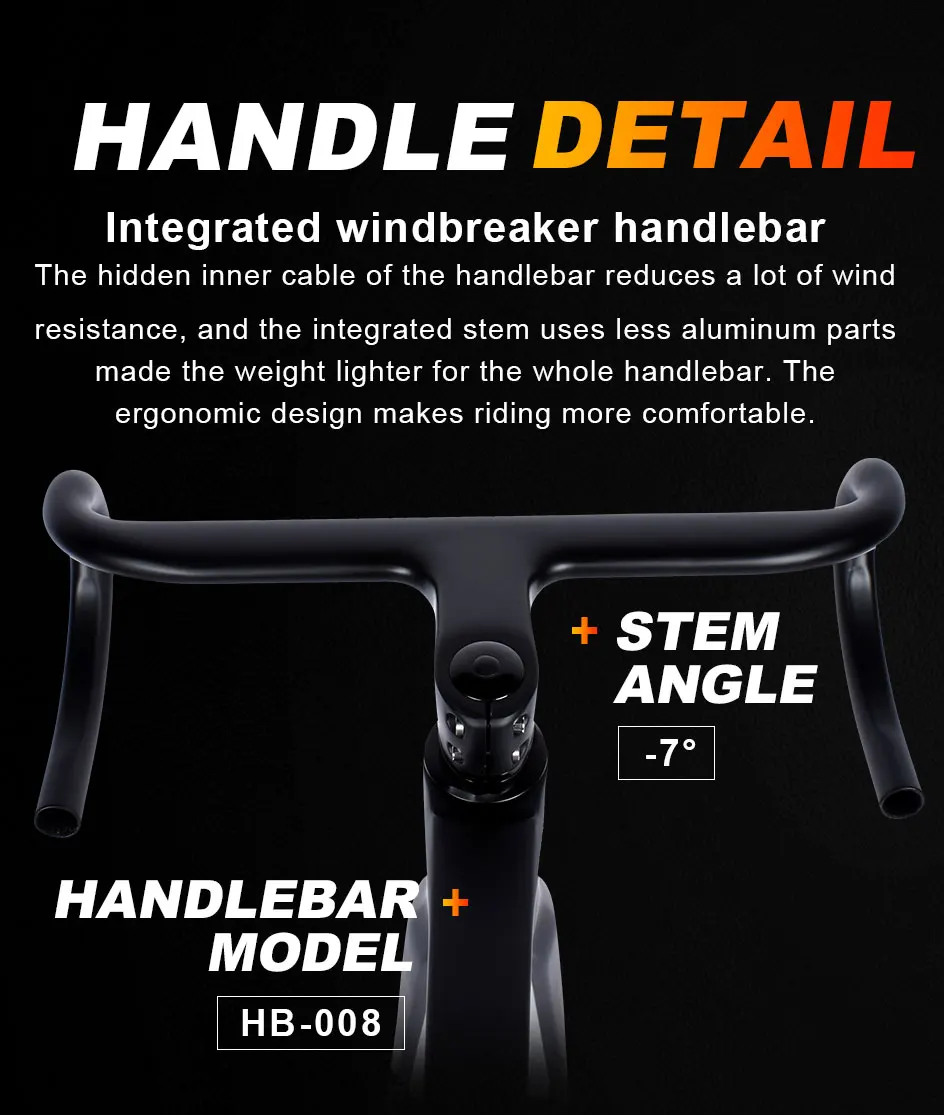

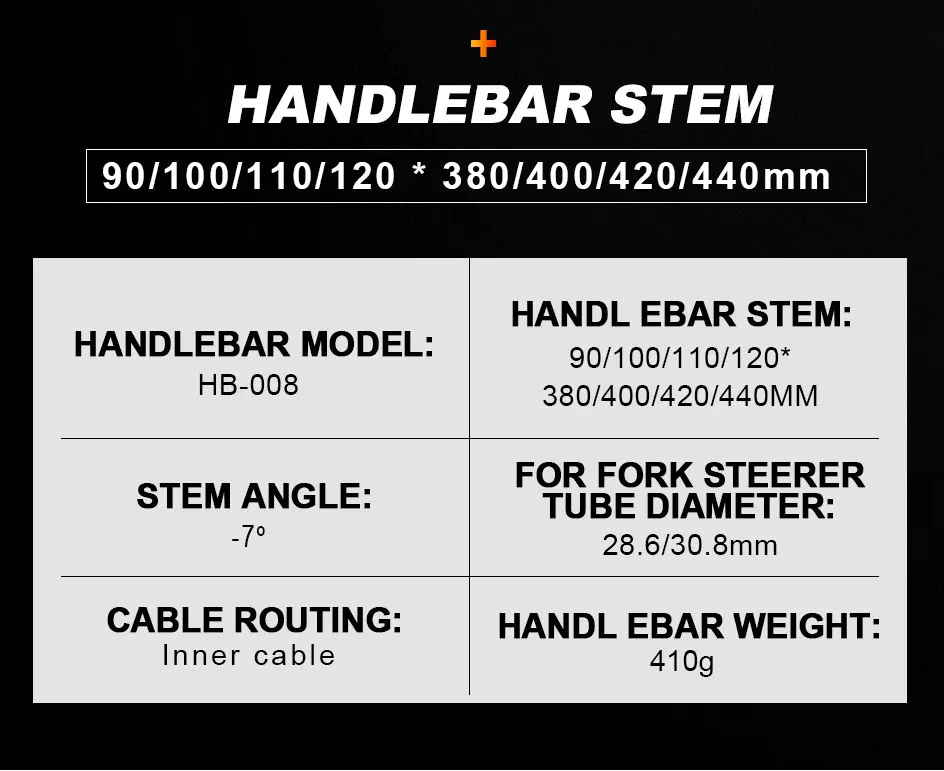

Handlebar size: normal size 380*90/400*100/420*110/440*120MM
(default 420*110mm if you didn’t leave a massage, so please tell us if you need other sizes)
Seat Post: 31.6mm
Max tires: 700*28C

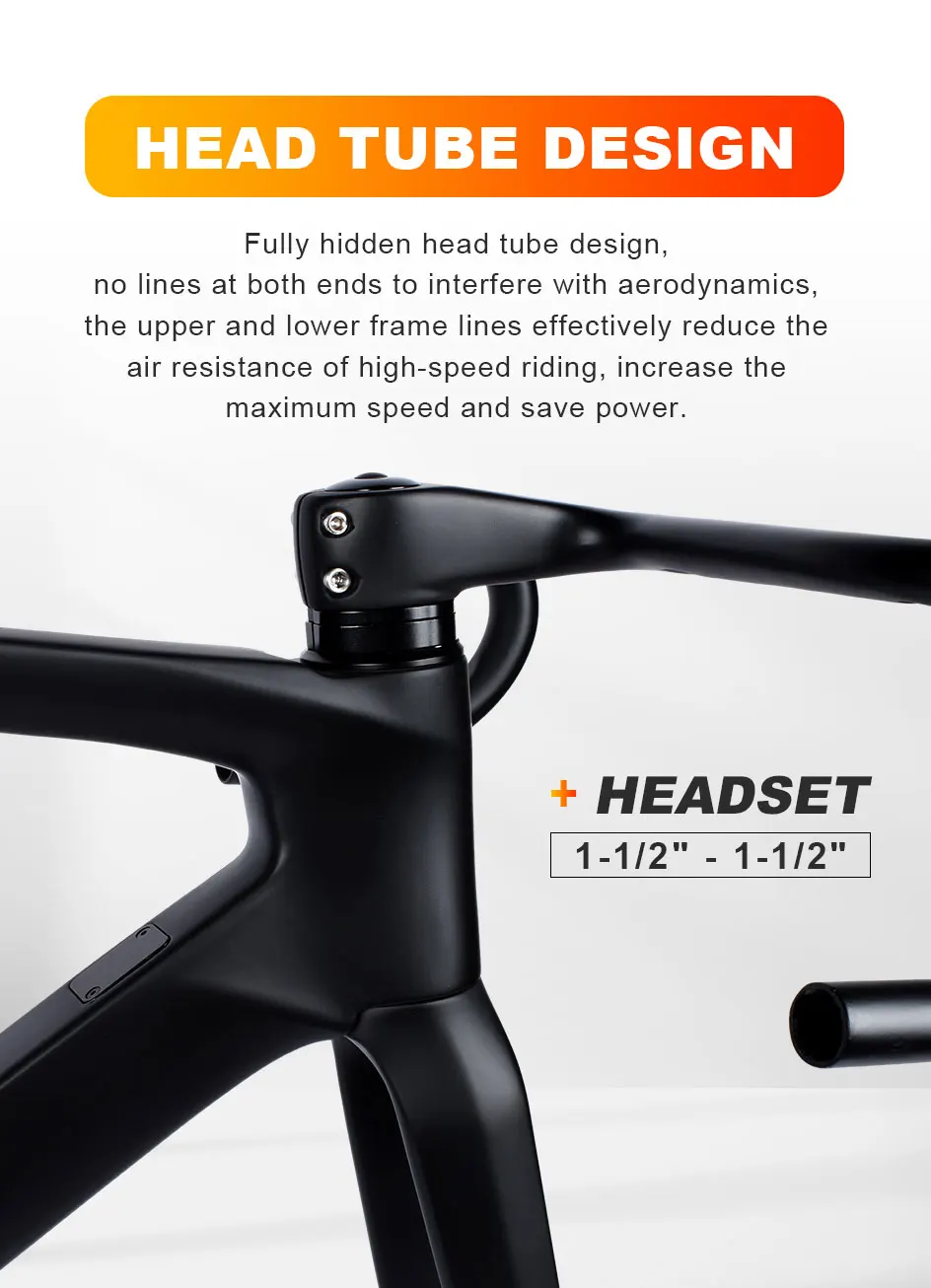

Headset: 1 1/2 to 1 1/2, straight tube.
Frame Weight: 1080+/-45g (54cm)
Fork weight: 359+/-15g
Seatpost weight: 239+/-10g

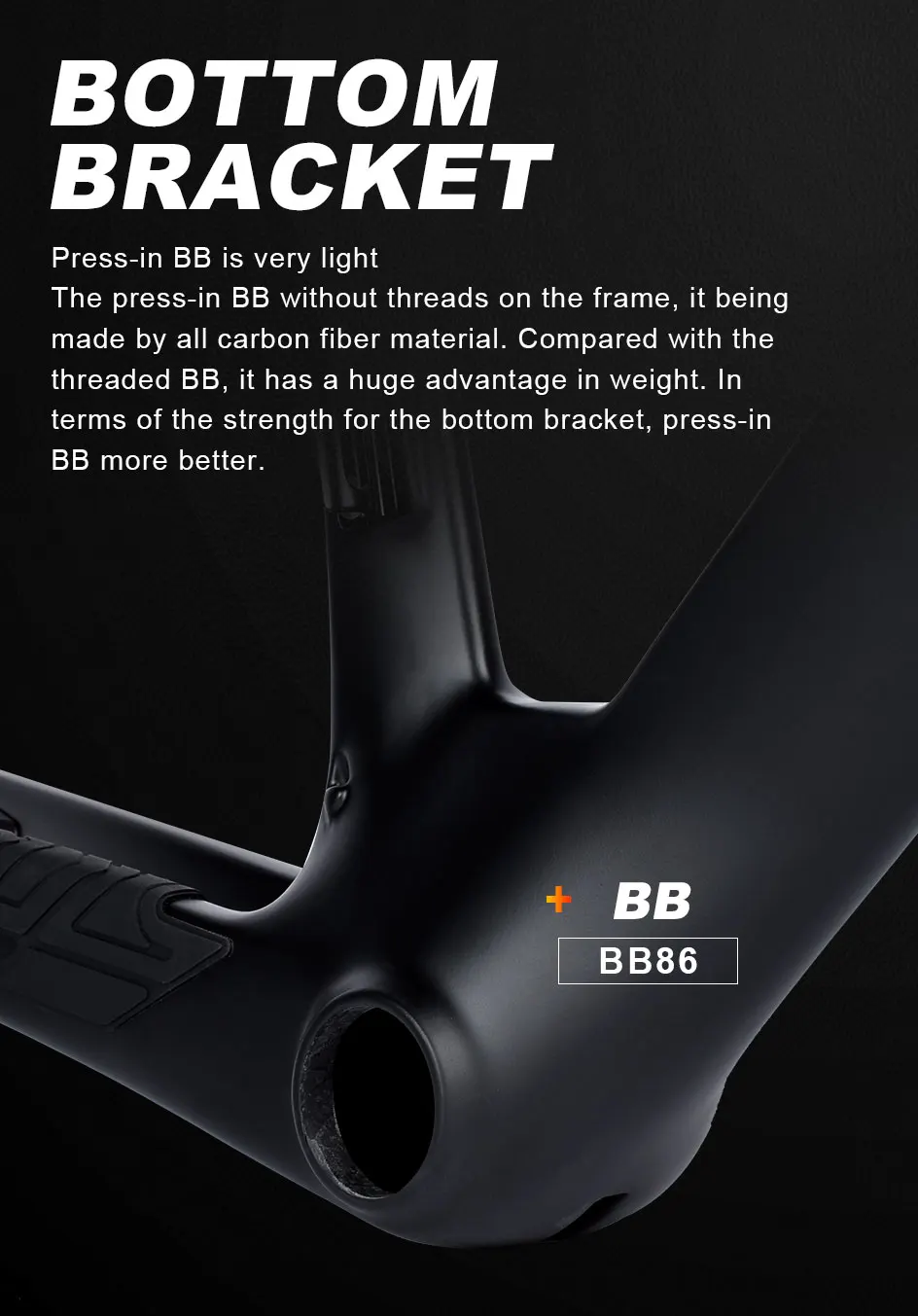

Bottom bracket: BB86 press-fit
Disc brake: flat mount 140mm disc brake

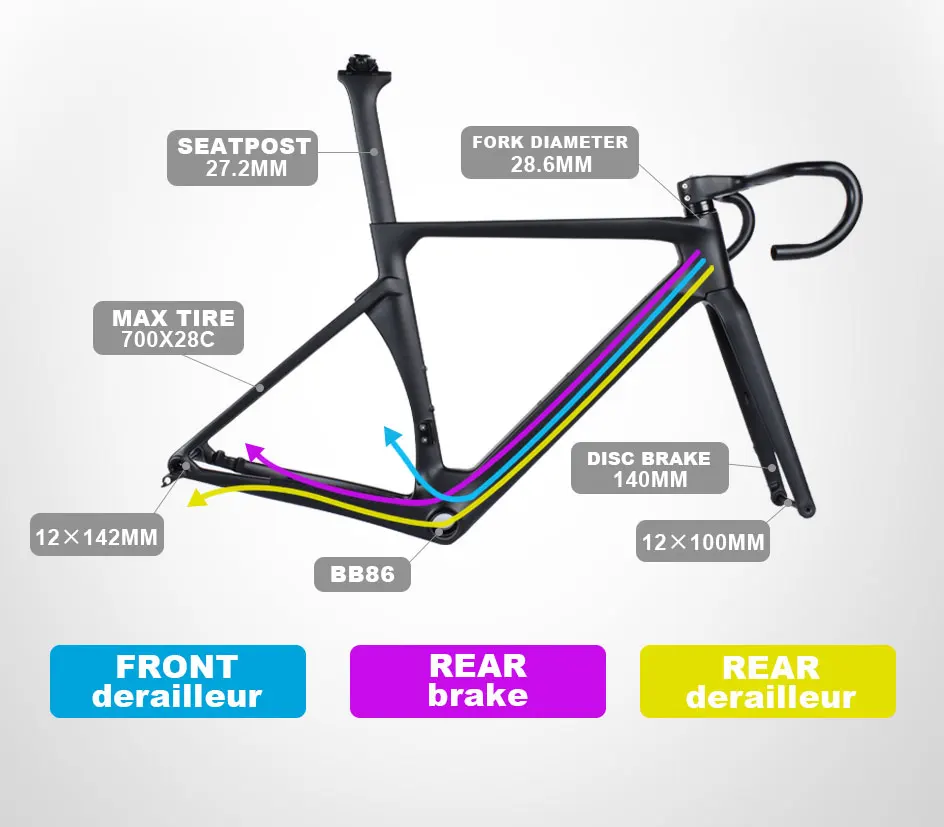

Cable routing: Full Hidden Cable Routing Internal
Axle: Thru axle: front 100*12mm , rear 142*12mm

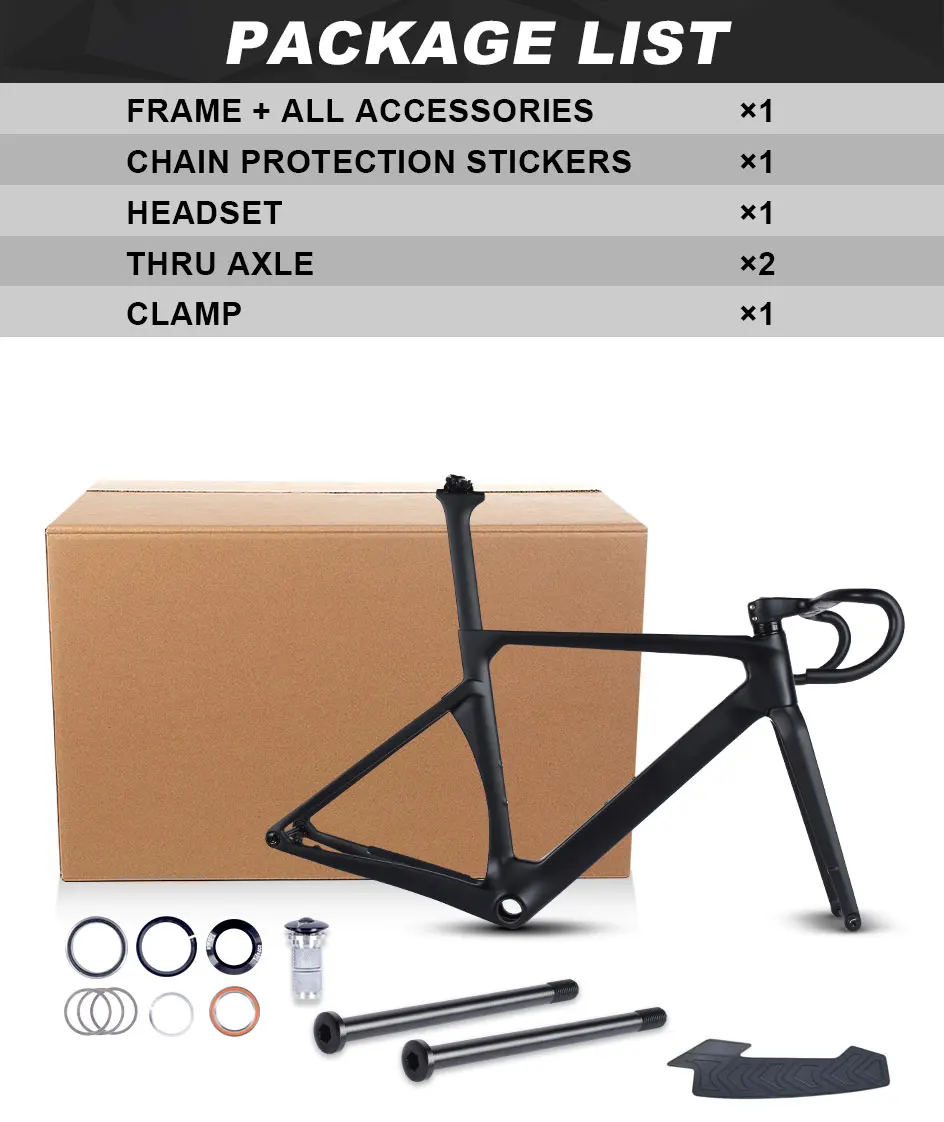

Including: frame*1+fork*1+seatpost*1+handlebar*1+headset*1+clamp*1+thru axle shaft*1

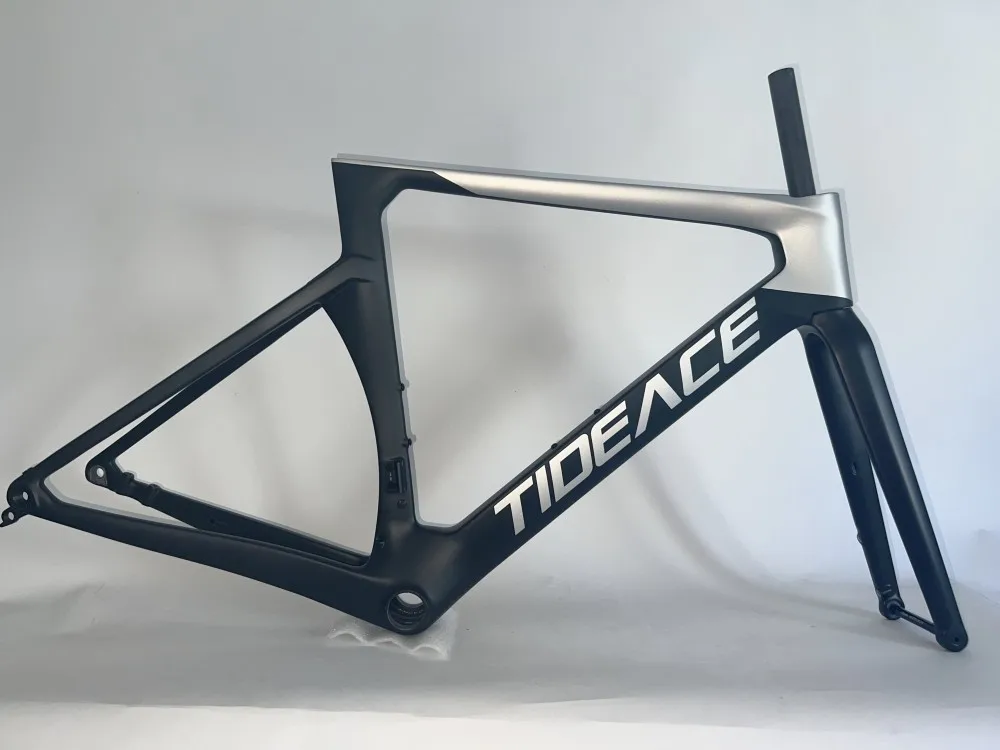

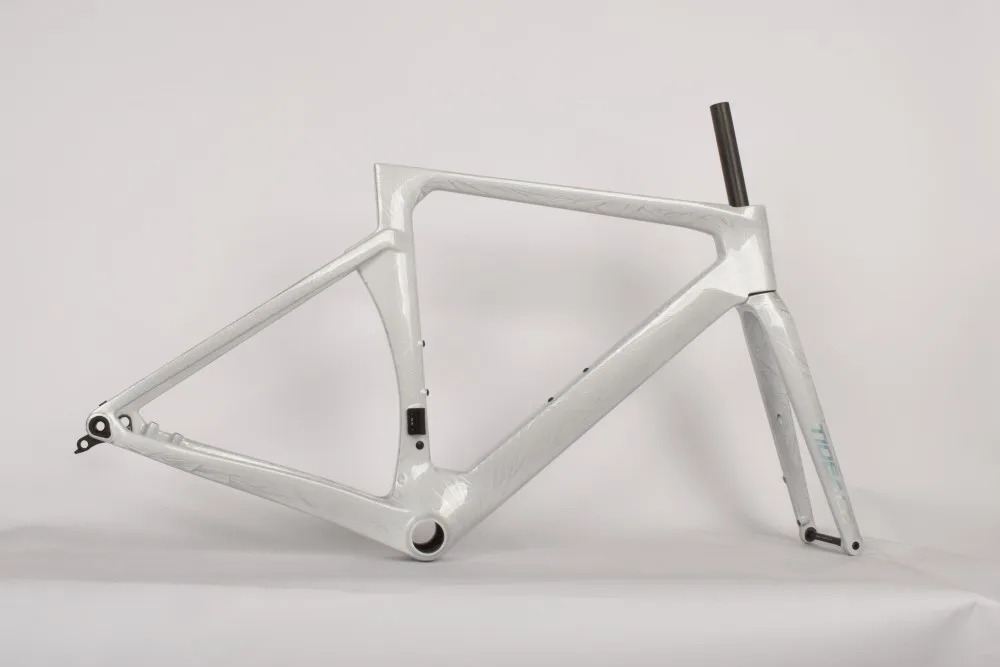

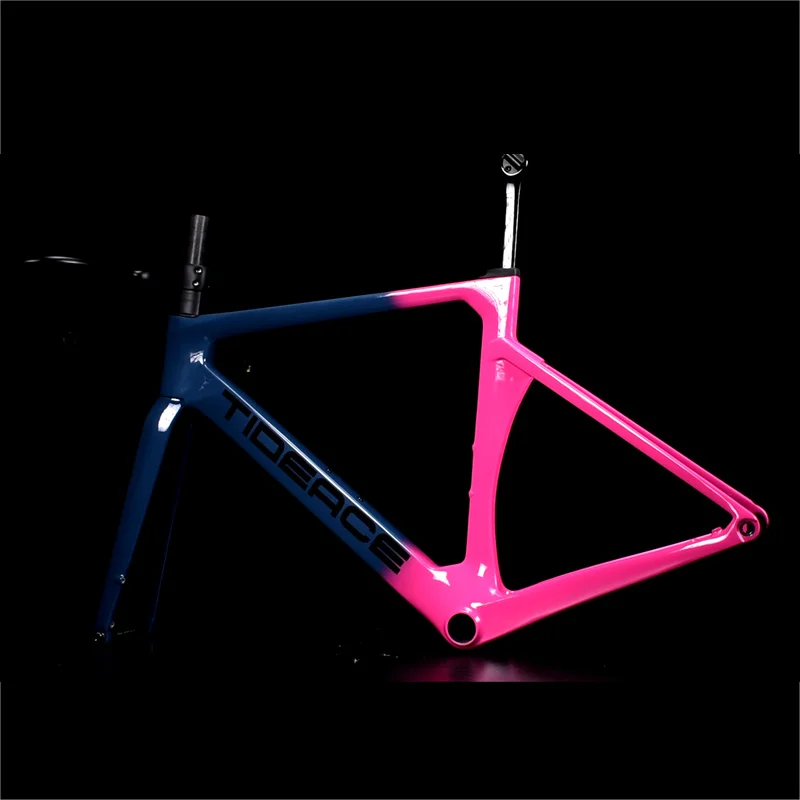

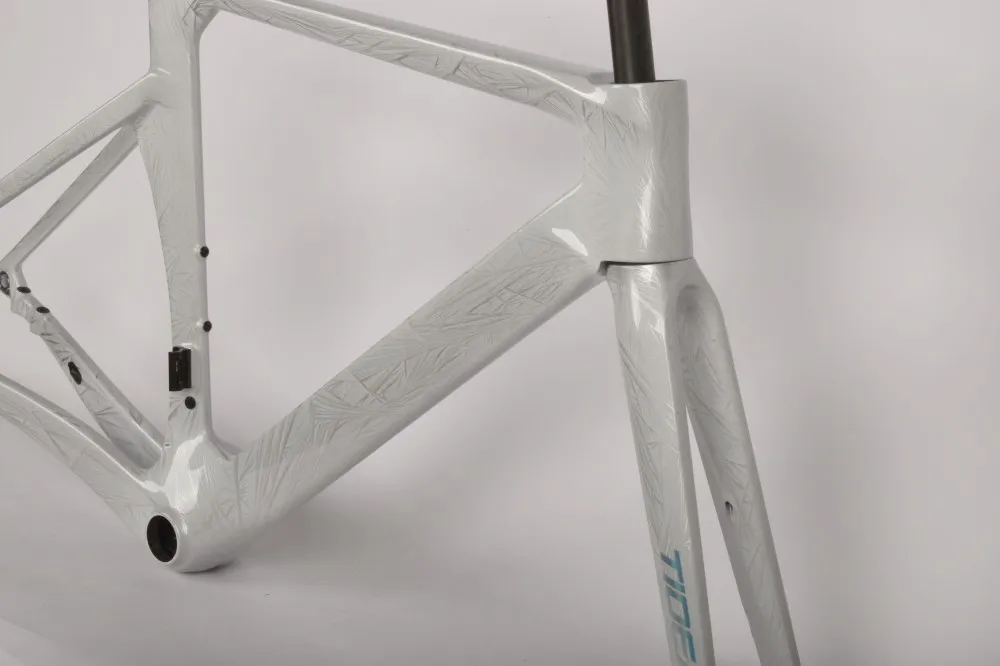

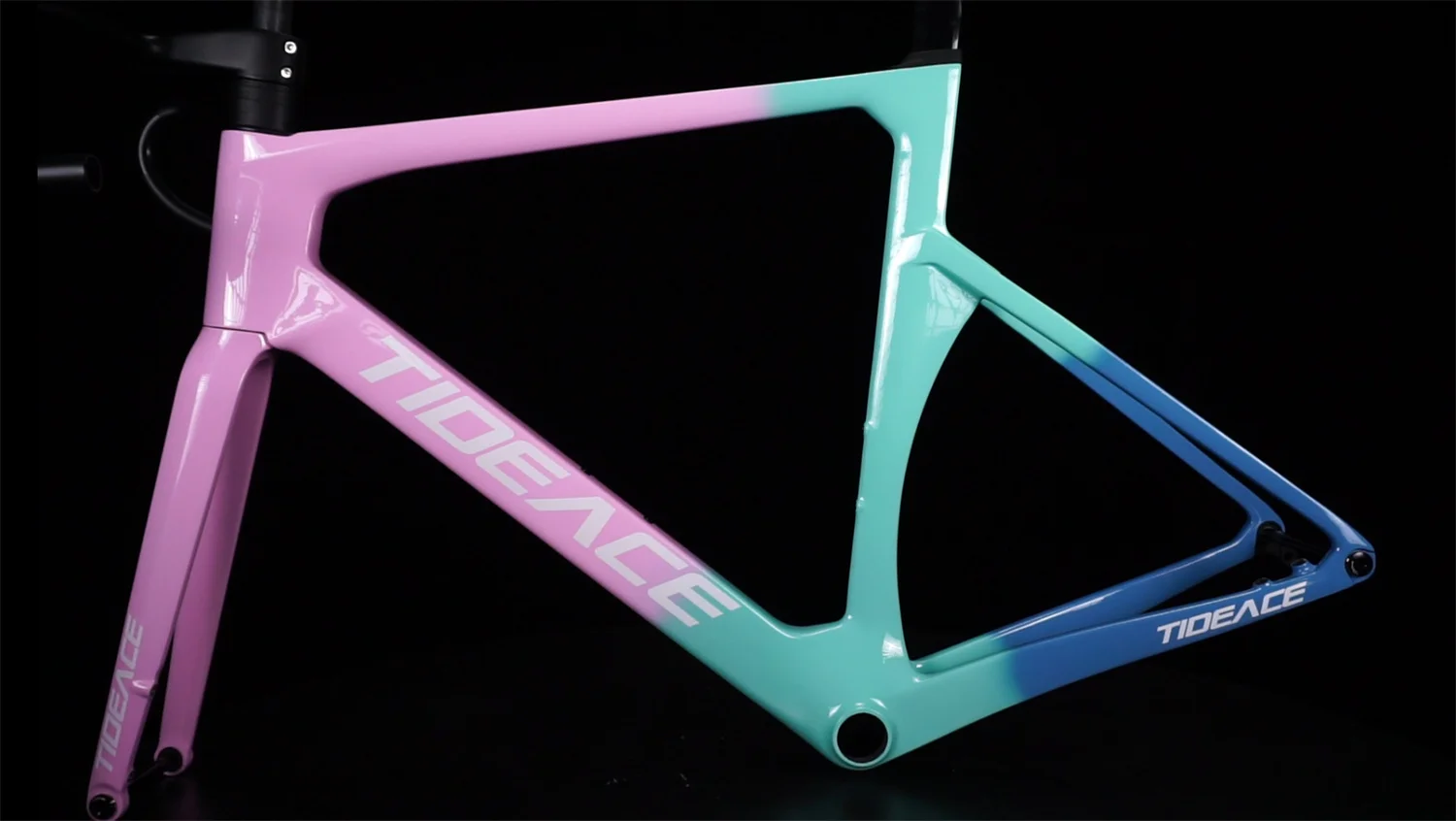

Cutoms Painting For Reference:

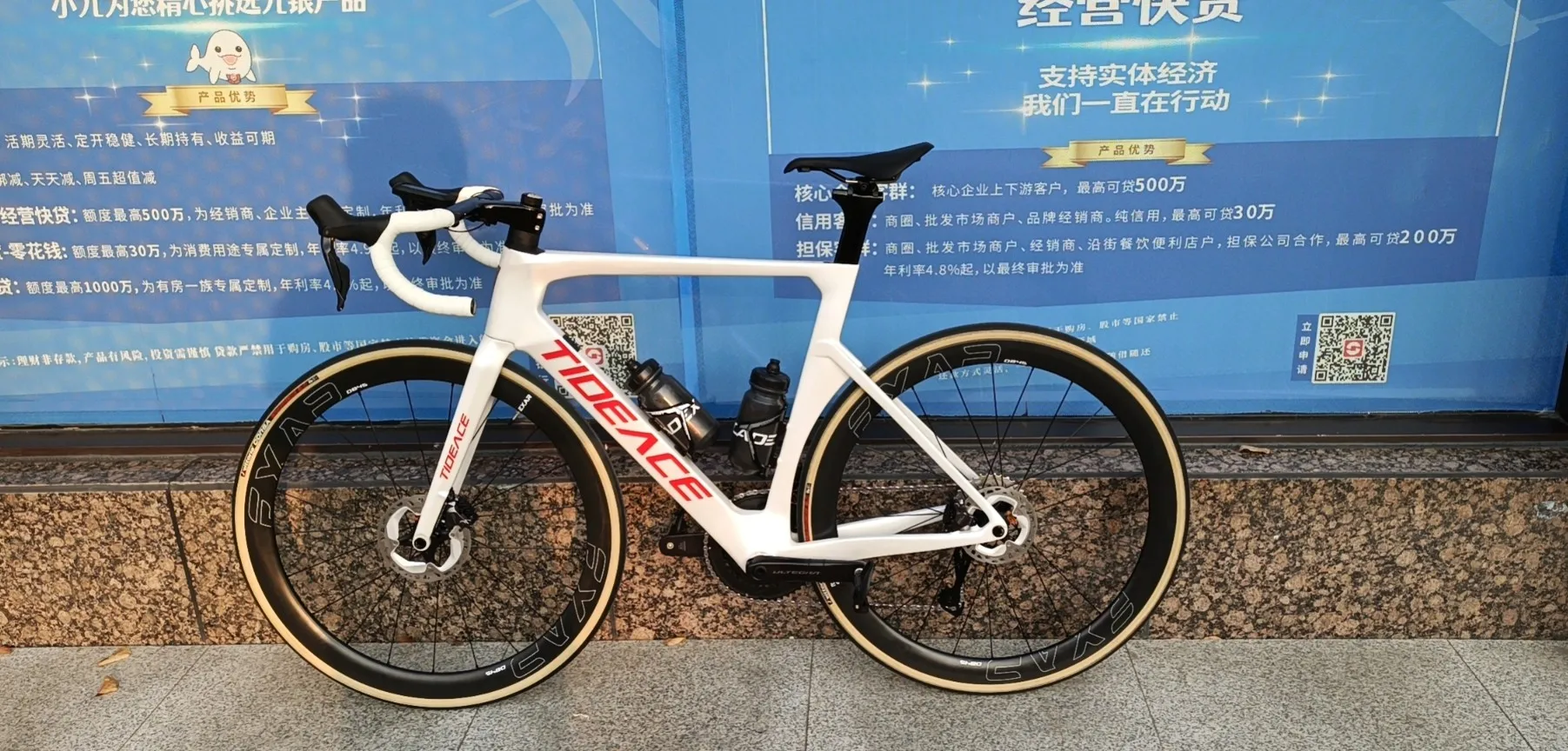

Real Frame or Full Bike Feedback From Customers:

How to choose the color:

1, “other whole color” for other colors except for BLACK (please choose color NO. from normal colors) .
” one chameleon color” please choose from chameleon series colors in details.
2, “mixed colors paint” for more than 1 color paint.

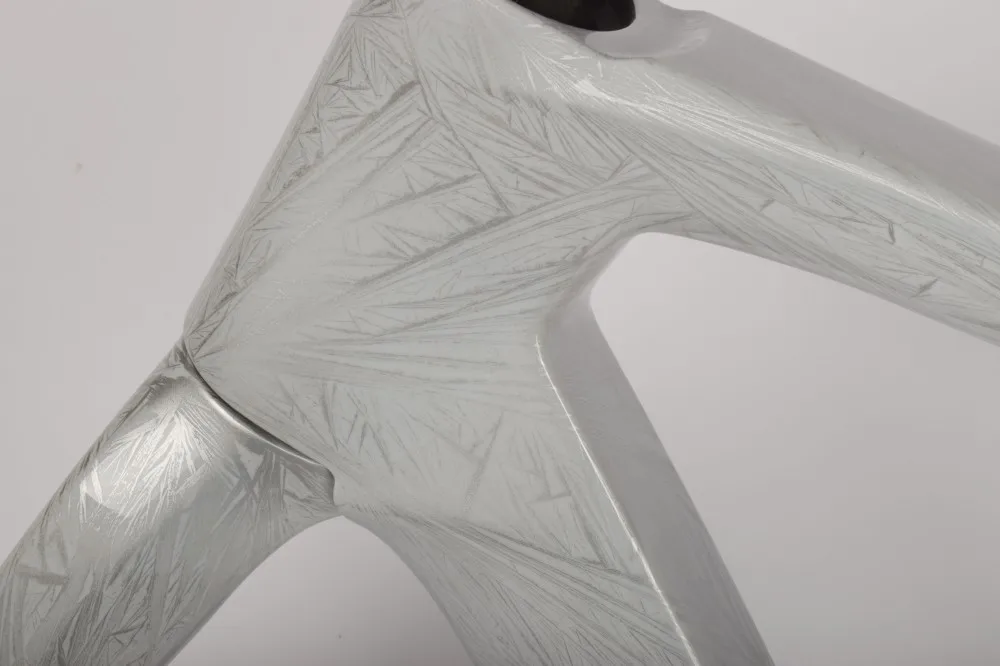

3, “TRANSPARENT ” color and “ICE CRACK PATTERN” color cost are different,
please add “extra painting cost” into cart and place order with frame together, thanks!
Remarks:
“extra paint cost” isNOT for a full frame, it is the extra paint cost for custom painting. Please know this and we won’t ship if you pay for this item separately.
Available Colors for Choice:

Additional information

Weight 3.8 kg
Dimensions 103 × 20 × 58 cm
is_customized

Yes

Model Number

FM-CR08

Use

Road Bicycles

Weight

1080+/-50g (54cm)

Foldable

No

Material

Carbon

Brand Name

Tideace

Origin

Mainland China

Frameset

Frame+Fork+Seatpost+Clamp+Headset+Integrated Handlebar with Stem+chain protector

Size

49/52/54/56/59cm

Integrated handlebar size

380*90/400*100/420*110/440*120MM

Headset

1 1/2- 1/ 1/2'' straight tube

Front and rear axle

front 100*12+rear 142*12

Bottom Bracket

BB86

Brake system

140mm flat mount disc brake

Frame weight

1080+/-45g (54cm)

Max tires

700X28C

Warranty

24 months

Derailleur system

Mechanical and Di2 compatible
