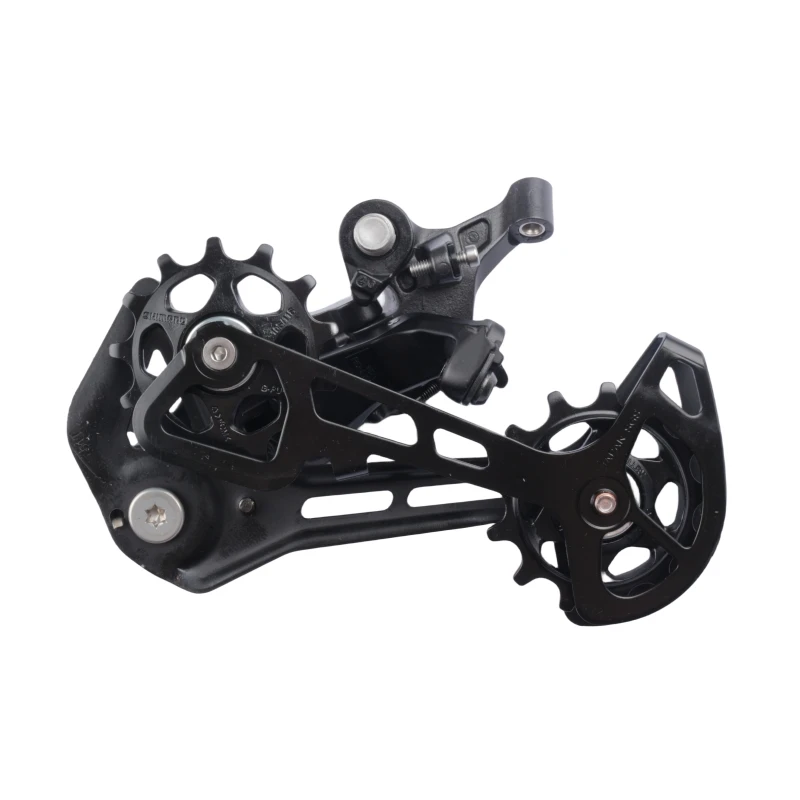

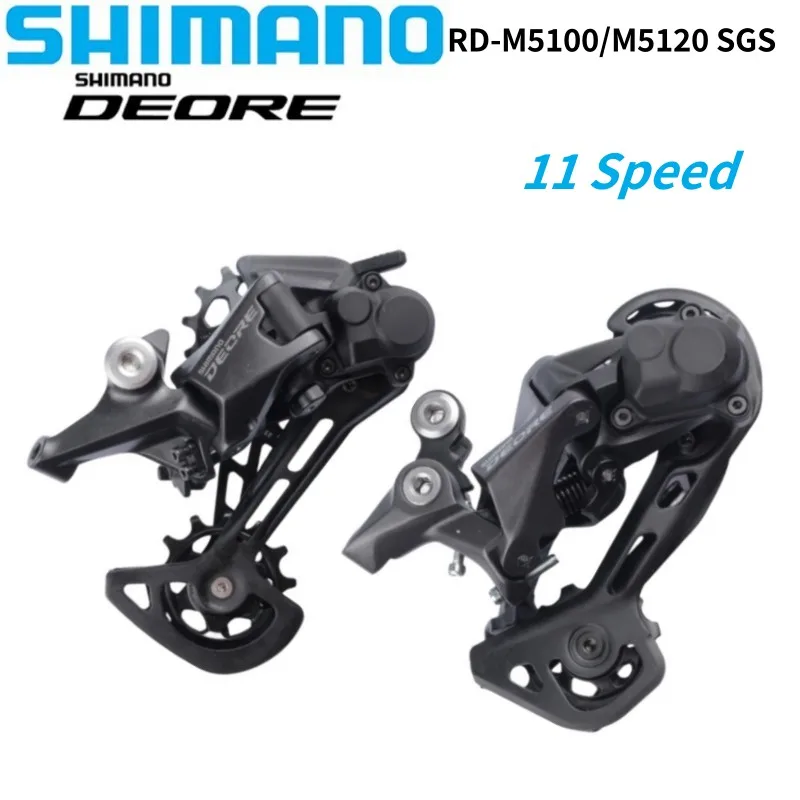

Shimano Deore Series M5100 M5120 SGS Rear Derailleur

Description

Shimano Deore Series M5100 M5120 SGS Rear Derailleur 11 Speed For Mountain Bike Derailleur Suit For M5100 M7000 Bike Parts
PRODUCT SPECIFICATIONS
MODEL NO: RD-M5100-SGS
SERIES: DEORE M5100 Series
Color: Series color
Rear speeds: 11
Compatible chain: LINKGLIDE, HG 11-speed
Top-normal spring type|SHIMANO SHADOW RD+:
Mount|Direct attachment (conventional):
Max. front difference: 0T
Total capacity: 40T
Low sprocket|Max.: 51T
Low sprocket|Min.: 51T
Top sprocket|Max.: 11T
Top sprocket|Min.: 11T
Fluoric coated link bushings: 7
Pulley|Teeth: 13T
Pulley|Sunken type pulley screw:
B-axle|Hollow axle:

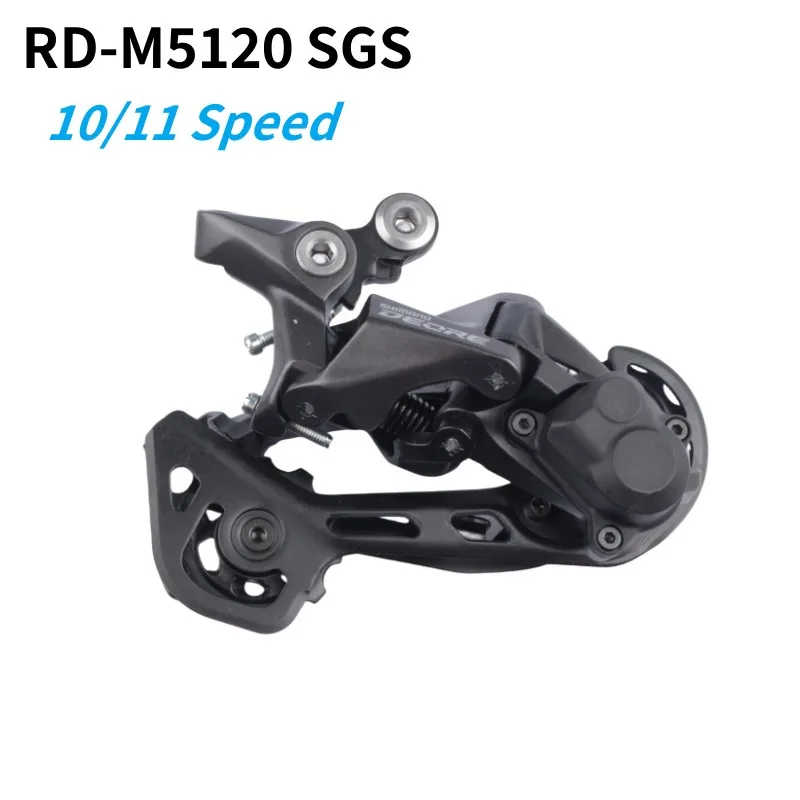

Model RD-M5120-SGS
Series DEORE M5100 Series
Color series colors
Rear variable speed 11/10
Compatible chain HG-X11 11 speed HG-X 10 speed
High standard spring type | SHIMANO SHADOW RD+(hidden rear shift) ✔
Installation method | Direct attachment (conventional) ✔
Installation method | Direct installation ✔
The difference between the maximum and minimum number of sprocket teeth is 10T
Total value of gear change range 41T
Low position flywheel plate | Maximum teeth 46T (1×11/2×10 speed), 42T (2×11/2×10 speed)
Low position flywheel plate | minimum tooth 42T
High position flywheel plate | maximum teeth 11T
High position flywheel plate | minimum tooth 11T
Chain link liner 4 with fluorine coating
Guide wheel | Number of teeth combination 11T
Guide wheel | sunken guide wheel screw ✔
B-axis | hollow axis ✔
B-axis 2 | hollow axis ✔
